Product Description
- The storage tank is suitable for use in the food and chemical industries and allows the storage of liquids such as drinking water but also acids and alkalis
- Space-saving bearing tank in rectangular form with filling dome at the top and a device for a mating flange
- The tank is reinforced by bandages and a steel ring
- It is made of food-grade PE, is resistant to most acids and alkalis and is approved for the contact and storage of food such as drinking water
- A screw connection with transfer nuts and blind plugs is included in the delivery
- Please note that the optionally available threaded sockets, nipples or flanged fittings must be welded at the factory and in this case we need precise information on where these should be installed
- Material tank - polyethylene
- Material Bandages - Steel, galvanized
- Volume - 1100 to 4000 l
- Dimensions (L x W x H) - 1400 x 720 x 1400 to 2430 x 995 x 1950 mm
- Nominal width of filling dome - DN 400
- Threaded connection Blind plug - R2 "
- Number of bandages - 2 to 4 pieces
- Number of screw connections - 1 or 3
- Max. Continuous temperature - 30 ° C
- Color - black and natural
- Approval - KTW, KSW
- Weight - 55 to 235 kg
Versions: (12)
Narrow down your selection
volume
Dimensions (L x W x H)
Number of bandages
Number of screw connections
mass
Colour
Item No.: 956484920000
Type
| volume | 1100 l |
| Dimensions (L x W x H) | 1400 x 720 x 1400 mm |
| Number of bandages | 2 pieces |
| Number of screw connections | 1 piece |
| mass | 55 kg |
| Colour | nature |
Product safety
Manufacturer part number: 849200
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 858,44 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484920200
Type
| volume | 1100 l |
| Dimensions (L x W x H) | 1400 x 720 x 1400 mm |
| Number of bandages | 2 pieces |
| Number of screw connections | 1 piece |
| mass | 55 kg |
| Colour | black |
Product safety
Manufacturer part number: 849202
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 858,44 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484921000
Type

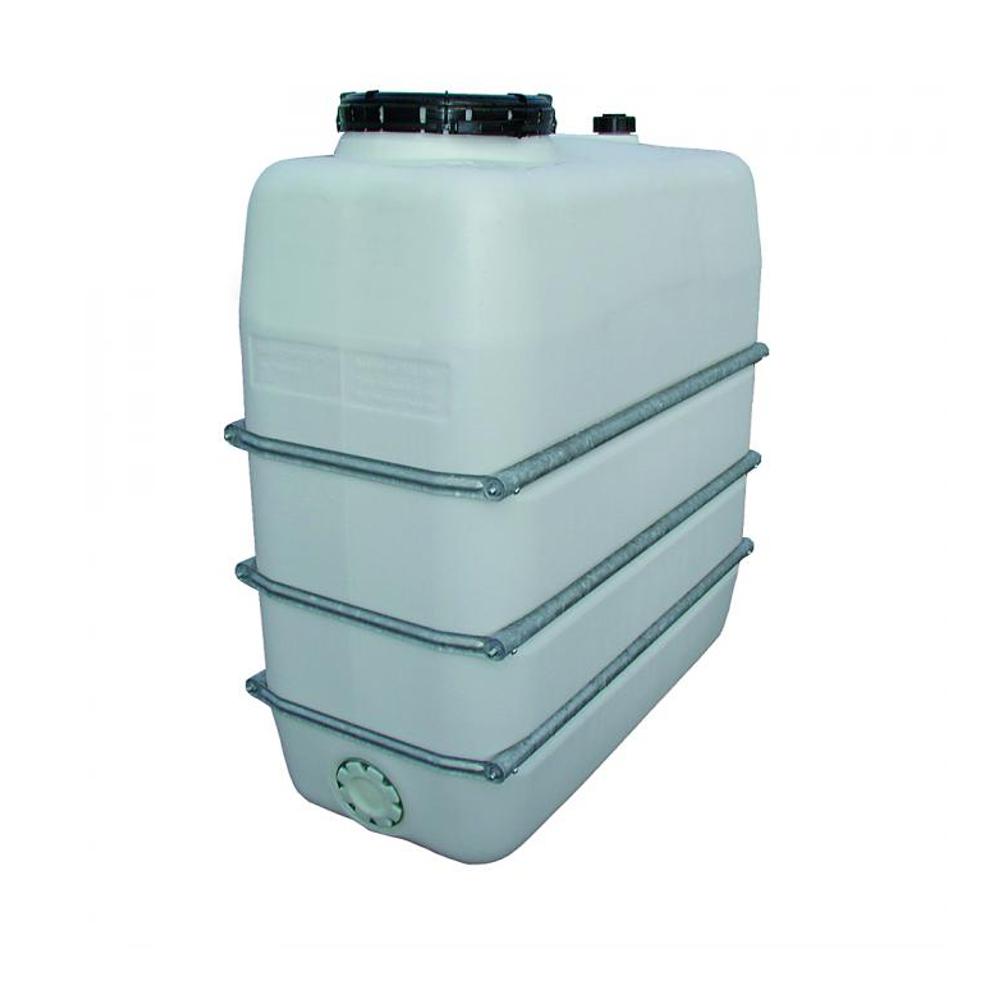

| volume | 1500 l |
| Dimensions (L x W x H) | 1560 x 720 x 1640 mm |
| Number of bandages | 3 pieces |
| Number of screw connections | 1 piece |
| mass | 70 kg |
| Colour | nature |
Product safety
Manufacturer part number: 849210
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 1.267,56 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484921200
Type
| volume | 1500 l |
| Dimensions (L x W x H) | 1560 x 720 x 1640 mm |
| Number of bandages | 3 pieces |
| Number of screw connections | 1 piece |
| mass | 70 kg |
| Colour | black |
Product safety
Manufacturer part number: 849212
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 1.267,56 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484922000
Type

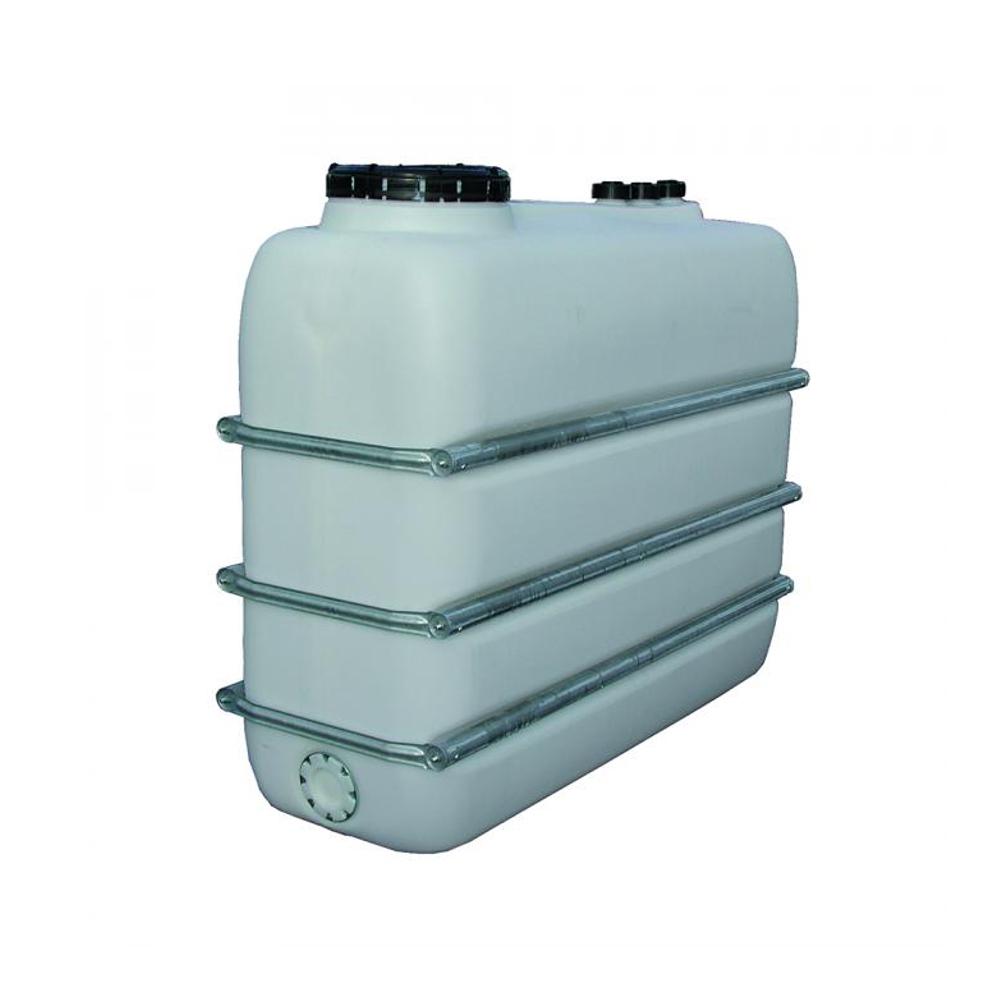

| volume | 2000 l |
| Dimensions (L x W x H) | 2070 x 720 x 1690 mm |
| Number of bandages | 3 pieces |
| Number of screw connections | 3 pieces |
| mass | 110 kg |
| Colour | nature |
Product safety
Manufacturer part number: 849220
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 1.585,33 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484922200
Type

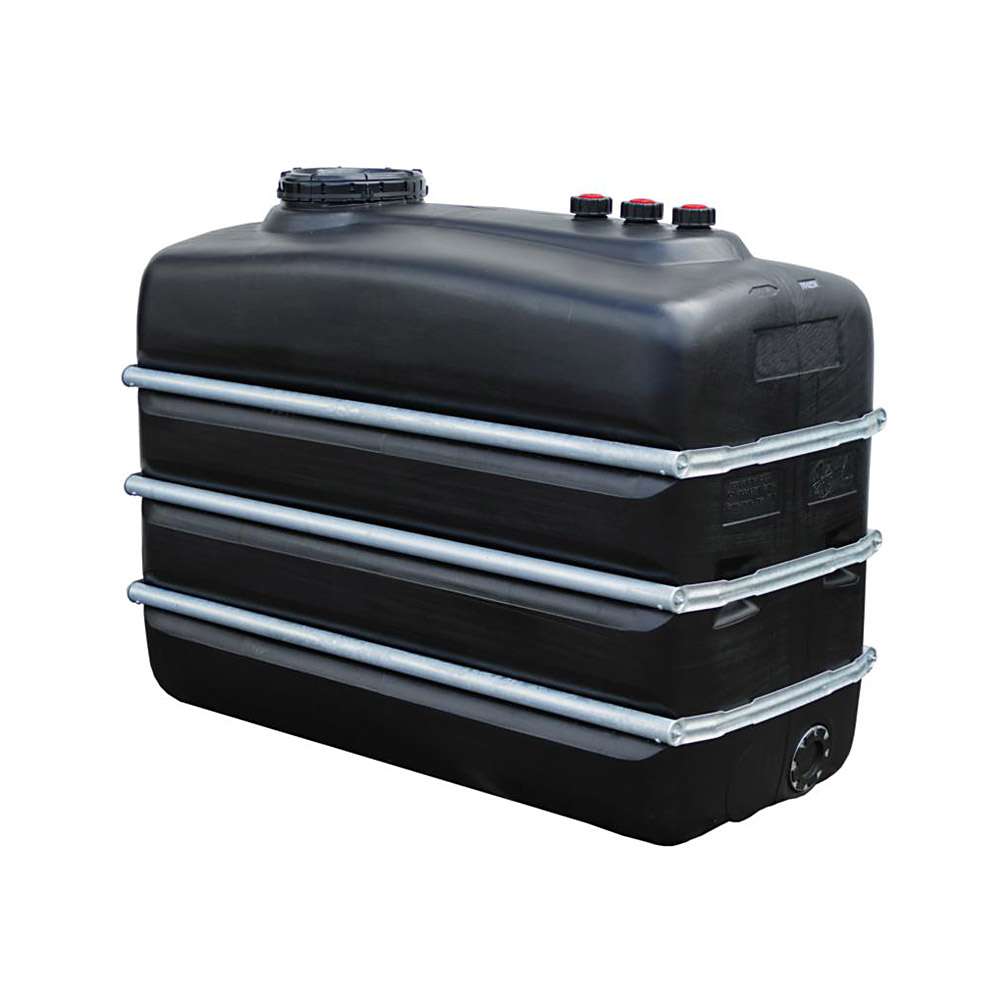

| volume | 2000 l |
| Dimensions (L x W x H) | 2070 x 720 x 1690 mm |
| Number of bandages | 3 pieces |
| Number of screw connections | 3 pieces |
| mass | 110 kg |
| Colour | black |
Product safety
Manufacturer part number: 849222
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 1.585,33 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484923000
Type

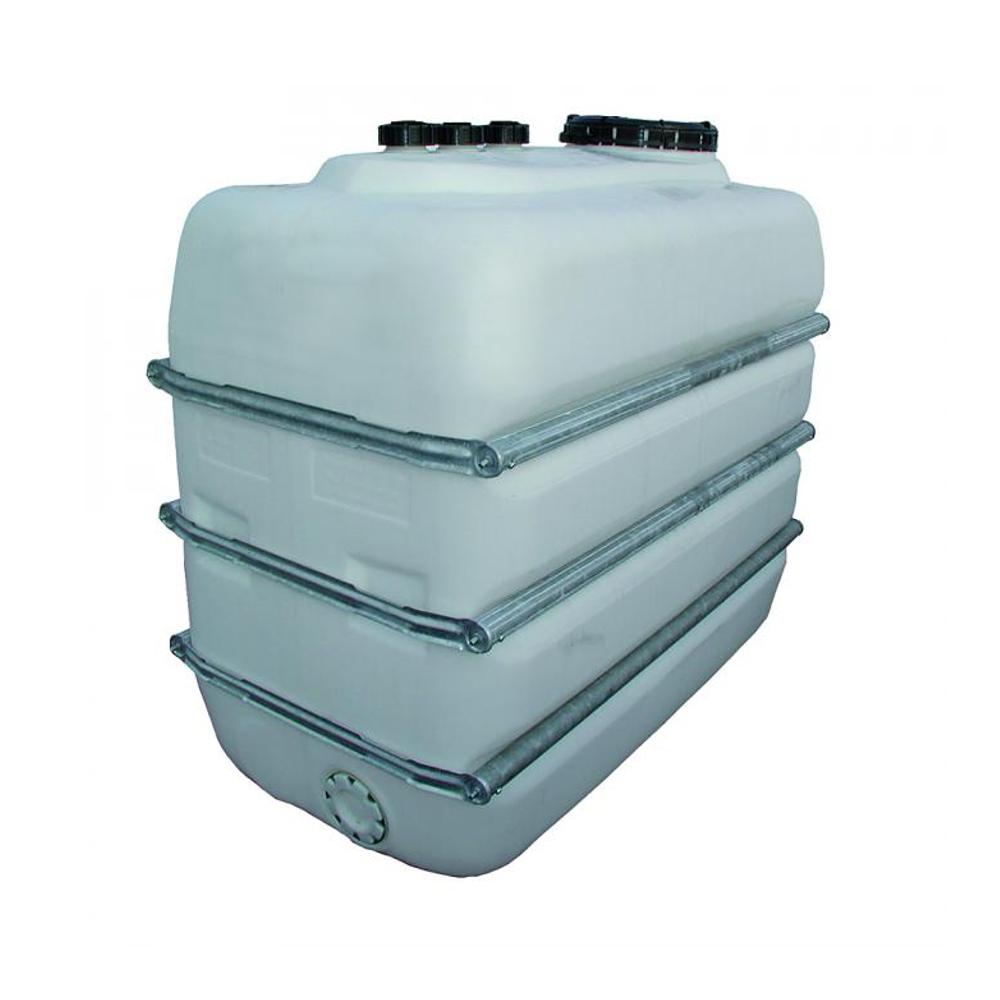

| volume | 2500 l |
| Dimensions (L x W x H) | 1870 x 995 x 1650 mm |
| Number of bandages | 3 pieces |
| Number of screw connections | 3 pieces |
| mass | 115 kg |
| Colour | nature |
Product safety
Manufacturer part number: 849230
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 2.616,22 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484923100
Type

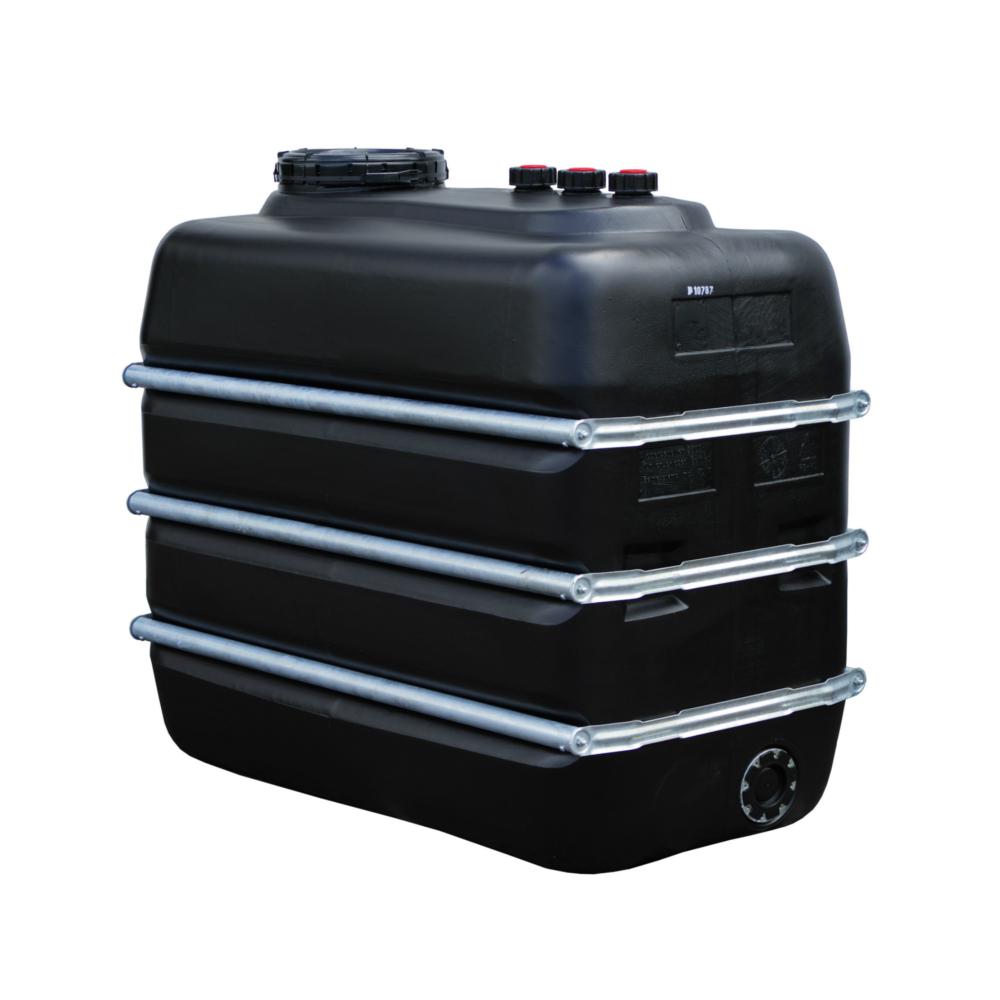

| volume | 2500 l |
| Dimensions (L x W x H) | 1870 x 995 x 1650 mm |
| Number of bandages | 3 pieces |
| Number of screw connections | 3 pieces |
| mass | 115 kg |
| Colour | black |
Product safety
Manufacturer part number: 849231
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 2.616,22 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484924000
Type
| volume | 3000 l |
| Dimensions (L x W x H) | 2230 x 995 x 1650 mm |
| Number of bandages | 3 pieces |
| Number of screw connections | 3 pieces |
| mass | 165 kg |
| Colour | nature |
Product safety
Manufacturer part number: 849240
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 3.191,78 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484924100
Type
| volume | 3000 l |
| Dimensions (L x W x H) | 2230 x 995 x 1650 mm |
| Number of bandages | 3 pieces |
| Number of screw connections | 3 pieces |
| mass | 165 kg |
| Colour | black |
Product safety
Manufacturer part number: 849241
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 3.191,78 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484925000
Type
| volume | 4000 l |
| Dimensions (L x W x H) | 2430 x 995 x 1950 mm |
| Number of bandages | 4 pieces |
| Number of screw connections | 3 pieces |
| mass | 235 kg |
| Colour | nature |
Product safety
Manufacturer part number: 849250
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 4.147,11 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 956484925100
Type
| volume | 4000 l |
| Dimensions (L x W x H) | 2430 x 995 x 1950 mm |
| Number of bandages | 4 pieces |
| Number of screw connections | 3 pieces |
| mass | 235 kg |
| Colour | black |
Product safety
Manufacturer part number: 849251
Manufacturer: Otto Graf GmbH Kunststofferzeugnisse, Carl-Zeiss-Str. 2, 79331 Teningen, Germany, www.graf.info, www.graf.info/de/kontakt.html, mail@graf.info
| € 4.147,11 |
| Price incl. VAT |
Delivery time 3 weeks
