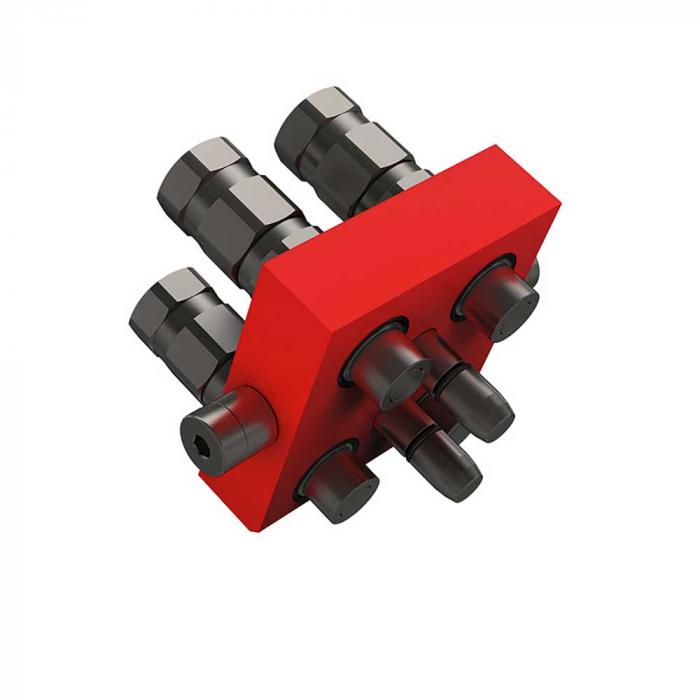

Multi-coupling series MSTPH4 3P - plug - zinc-nickel - DN 12 - size 8 - internal thread G 1/2 "- PN 460
| € 514,38 |
| Price incl. VAT |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
9799MSTPH440
Product Description
- The multi-coupling of the MSTPH4 3P series is ideally suited for the efficient connection of several hose and electrical cables at the same time and for use in agriculture, vehicle construction and construction machinery.
- The connector is equipped with four hydraulic inserts and a seal made of polyurethane and nitrile rubber.
- The coupling is designed with flat sealing and low leakage oil.
- Thanks to the fixed lines, security against mix-ups is guaranteed.
- The double-sided shut-off coupling of the PH series can be coupled under pressure up to a maximum of 350 bar. The coupling and uncoupling process is simple and easy thanks to the central lever.
- Series - 3P
- Surface - zinc-nickel
- Material seal - PU and NBR
- Nominal size - 12
- Size - 08
- Number of hydraulic inserts - 4
- max.number of hydraulic inserts - 4
- Flow rate at Î ”P = 2 bar - 60 l / min.
- Connection thread (IG) - G 1/2 "
- Resistance to red rust - 1000 hours
- max.operating pressure - 460 bar
- Temperature range - -25 to +100 Â ° C
