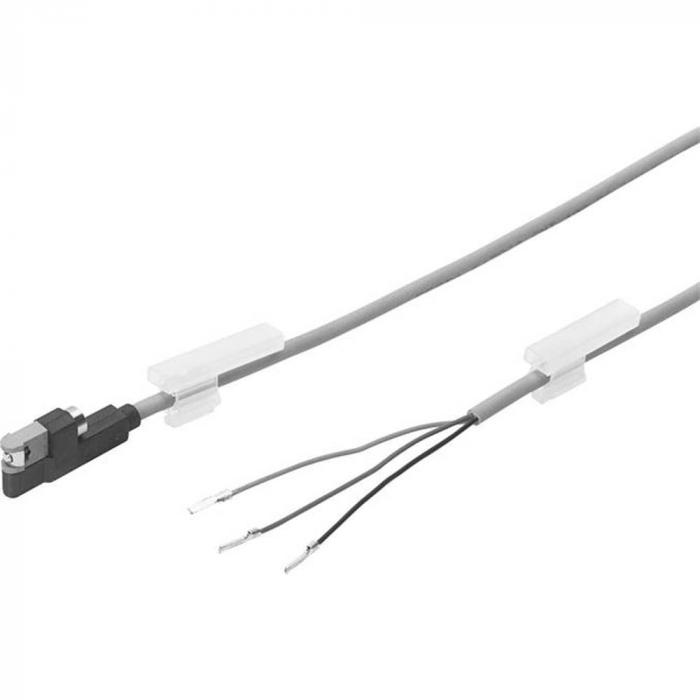

FESTO - Proximity switches - SMT-10G-NS-24V-E-2,5Q-OE - (8065030) - Switching output NPN - Connection technology open end, 3 poles/wire
€ 54,54 |
Price incl. VAT |
Ex stock within 4 days deliverable
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
381001005902
Product Description
- The proximity switch belongs to the sensors which react contact-free without direct contact.
- Proximity switch with magnetoresistive measuring principle.
- It has an open end.
- Cable sheath material - TPE-U(PU)
- Material housing - PA reinforced
- Approval - RCM Mark c UL us - Listed (OL)
- CE mark - according to EU EMC Directive
- KC sign - KC-EMV
- Material note - RoHS compliant
- Measuring principle - magnetoresistive
- Ambient temperature - from - 20 to 70 °C
- Switching output - NPN
- Switching element function - normally open contact
- Repeatability of the switching value - 0.2 mm
- max. output current - 100 mA
- max. switching capacity DC - 2.8 W
- Short circuit resistance - yes
- Overload resistance - present
- Operating voltage range DC - 10 to 30 V
- Reverse polarity protection - for all electrical connections
- electrical connection 1, connection type - cable
- electrical connection 1, connection technology - open end
- Electrical connection 1, number of poles/wires - 3
- Outlet direction connection - transverse
- Cable length - 2.5 m
- Line property - drag chain + robot
- Type of fastening - clamped in round groove, can be inserted longitudinally into groove
- Ambient temperature with movable cable installation - from -5 to 70 °C
- Protection class - IP65, IP68
