Union T - PVDF
(Exemplary presentation)
| From € 116,96 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!

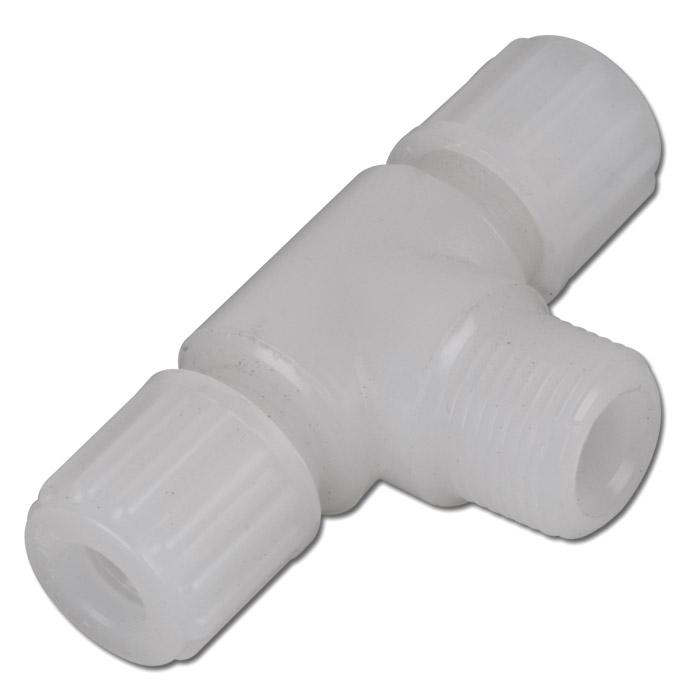

Product Description
- The Hose is pushed over the Hose Connector and fastened by Knurled Nut with an Elastic Compression Ring.
- The Compression Ring allows the manifold unfastening and fastening with same Compression Rings
- All Threads and Hose Nozzles (Hose Uptake) are Sutureless
- Application
- Union T for the connection of Hoses
- Resistant against Acids, Salt Solutions, Aliphatic, Aromatic and Chlorinated Hydrocarborns, Alcohols and Halogenes
- Suitable to only a limited extent for Ketones, Esters, Ethers, Organic Bases and Alcaline Leaches
- Material - PVDF (Polyvinylidene Fluoride)
- Operating Temperature: -40°C up to Max. +140°C
- PN - 10 bar (at +20°C)
Versions: (18)
Narrow down your selection
Material
Thread
Hose Ø Outer x Inner
Item No.: TCKX18101000
Type
| Material | PVDF |
| Thread | G 1/2" |
| Hose Ø Outer x Inner | 12 x 10 |
| € 116,96 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: TCKX18101001
Type
| Material | PVDF |
| Thread | G 1/2" |
| Hose Ø Outer x Inner | 14 x 12 |
| € 111,91 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: TCKX18101002
Type
| Material | PVDF |
| Thread | G 1/2" |
| Hose Ø Outer x Inner | 6 x 4 |
| € 80,72 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: TCKX18101003
Type
| Material | PVDF |
| Thread | G 1/2" |
| Hose Ø Outer x Inner | 8 x 6 |
| € 82,49 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: TCKX18101004
Type
| Material | PVDF |
| Thread | G 1/2" |
| Hose Ø Outer x Inner | 10 x 8 |
| € 89,46 |
| Price incl. VAT |
available after order placement within 20 weeks
Item No.: TCKX18101005
Type
| Material | PVDF |
| Thread | G 1/4" |
| Hose Ø Outer x Inner | 12 x 10 |
| € 96,22 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: TCKX18101006
Type
| Material | PVDF |
| Thread | G 1/4" |
| Hose Ø Outer x Inner | 14 x 12 |
| € 104,67 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: TCKX18101007
Type
| Material | PVDF |
| Thread | G 1/4" |
| Hose Ø Outer x Inner | 6 x 4 |
| € 37,53 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: TCKX18101008
Type
| Material | PVDF |
| Thread | G 1/4" |
| Hose Ø Outer x Inner | 8 x 6 |
| € 41,46 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: TCKX18101009
Type
| Material | PVDF |
| Thread | G 1/4" |
| Hose Ø Outer x Inner | 10 x 8 |
| € 54,62 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: TCKX18101010
Type
| Material | PVDF |
| Thread | G 1/8" |
| Hose Ø Outer x Inner | 6 x 4 |
| € 32,32 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: TCKX18101011
Type
| Material | PVDF |
| Thread | G 1/8" |
| Hose Ø Outer x Inner | 8 x 6 |
| € 41,21 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: TCKX18101012
Type
| Material | PVDF |
| Thread | G 1/8" |
| Hose Ø Outer x Inner | 10 x 8 |
| € 54,30 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: TCKX18101013
Type
| Material | PVDF |
| Thread | G 3/8" |
| Hose Ø Outer x Inner | 12 x 10 |
| € 110,25 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: TCKX18101014
Type
| Material | PVDF |
| Thread | G 3/8" |
| Hose Ø Outer x Inner | 14 x 12 |
| € 117,36 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: TCKX18101015
Type
| Material | PVDF |
| Thread | G 3/8" |
| Hose Ø Outer x Inner | 6 x 4 |
| € 49,19 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: TCKX18101016
Type
| Material | PVDF |
| Thread | G 3/8" |
| Hose Ø Outer x Inner | 8 x 6 |
| € 50,30 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: TCKX18101017
Type
| Material | PVDF |
| Thread | G 3/8" |
| Hose Ø Outer x Inner | 10 x 8 |
| € 55,43 |
| Price incl. VAT |
available after order placement within 9 weeks
