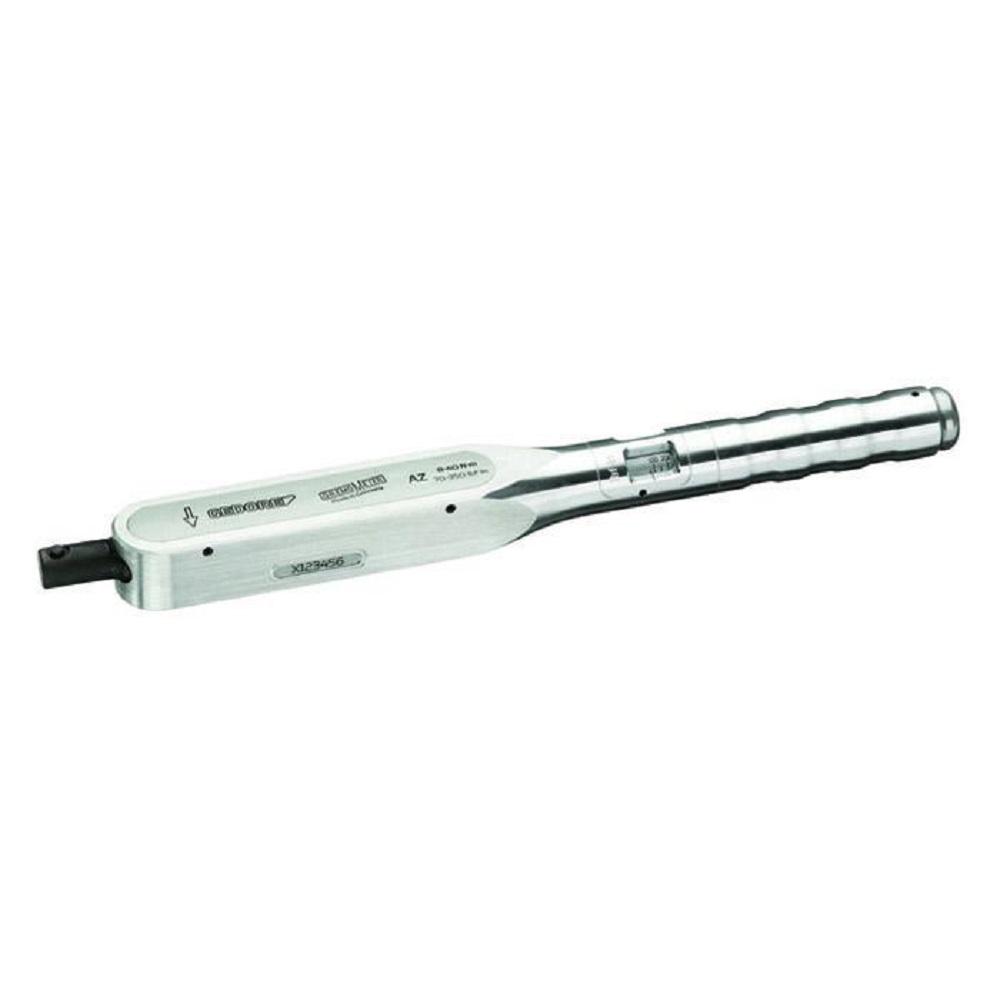

Torque wrench DREMOMETER Z - with quick-change system - 8 to 1000 Nm
| From € 453,99 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- Torque wrench DREMOMETER Z - ideal for mounting in confined and hard to reach places - guarantees flexible and speedy work
- Classified according to DIN EN ISO 6789: 2003 Type II Class A
- calibrated to a permissible deviation of +/- 3% and better
- lightweight, robust, insensitive and very workshop-friendly
- Housing made of one piece of aluminum
- Depending on the tool insert, it is possible to work both to the front (eg slip-on wrench) or to the side (eg reversible ratchet and socket insert)
- Operation only at handle center - do not use an extension tube
- only for model DXZ the DREMOMETER was calibrated and adjusted with the extension tube
- Actuation only with clip-on tools with uniform gauge
- large tool receiving cross-section of the pin transmits maximum torques
- extremely low wear due to reduction in the forces of the lever mechanism
- forged lever chain
- highest precision even with heavy continuous use
- long life and long service life
- simple operation - fast and safe tightening torque
- comfortable adjustment by captive adjustment knob at the end of the handle
- Drive mount, tenon - 16 to 28 mm
- Working / measuring range N · m (min / max) - 8-40 to 520-1000N · m
- Working / measuring range lbf · in (min / max): 70 lbf · in to 730 lbf · ft
- Scale graduation - 5 N · m / 50 lbf · in to 10 N · m / 10 lbf · ft
- Distance from handle center to pivot point (lw) - 300.0 to 1221.0 mm
- Gauge (C, L) - 32 to 75 mm
- Width - 35 to 45 mm
- Distance screw center to pivot point - 38 to 57 mm
- Distance housing - center drive - 16.5 to 17.5 mm
- Length - 366 to 1319 mm
- Weight - 1000 to 5500 gr
Versions: (5)
Narrow down your selection
Type
N · m
lbf · in
lbf · ft
lw
length
Item No.: 943138460010
Type
| Type | AZ |
| N · m | 8 - 40 |
| lbf · in | 70 - 350 |
| lbf · ft | - |
| lw | 300.0 mm |
| length | 366 mm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 453,99 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 943138461010
Type
| Type | BZ |
| N · m | 25 - 120 |
| lbf · in | - |
| lbf · ft | 18 - 90 |
| lw | 411.5 mm |
| length | 489 mm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 510,57 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 943138462010
Type
| Type | CZ |
| N · m | 80 - 400 |
| lbf · in | - |
| lbf · ft | 60 - 300 |
| lw | 567.0 mm |
| length | 645 mm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 638,52 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 943138463100
Type
| Type | DZ |
| N · m | 140 - 620 |
| lbf · in | - |
| lbf · ft | 100 - 450 |
| lw | 767.5 mm |
| length | 846 mm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 1.204,46 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 943138471010
Type
| Type | DXZ |
| N · m | 520 - 1000 |
| lbf · in | - |
| lbf · ft | 380 - 730 |
| lw | 1221.0 mm |
| length | 1319 mm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 1.506,04 |
| Price incl. VAT |
Ex stock within 4 days deliverable
