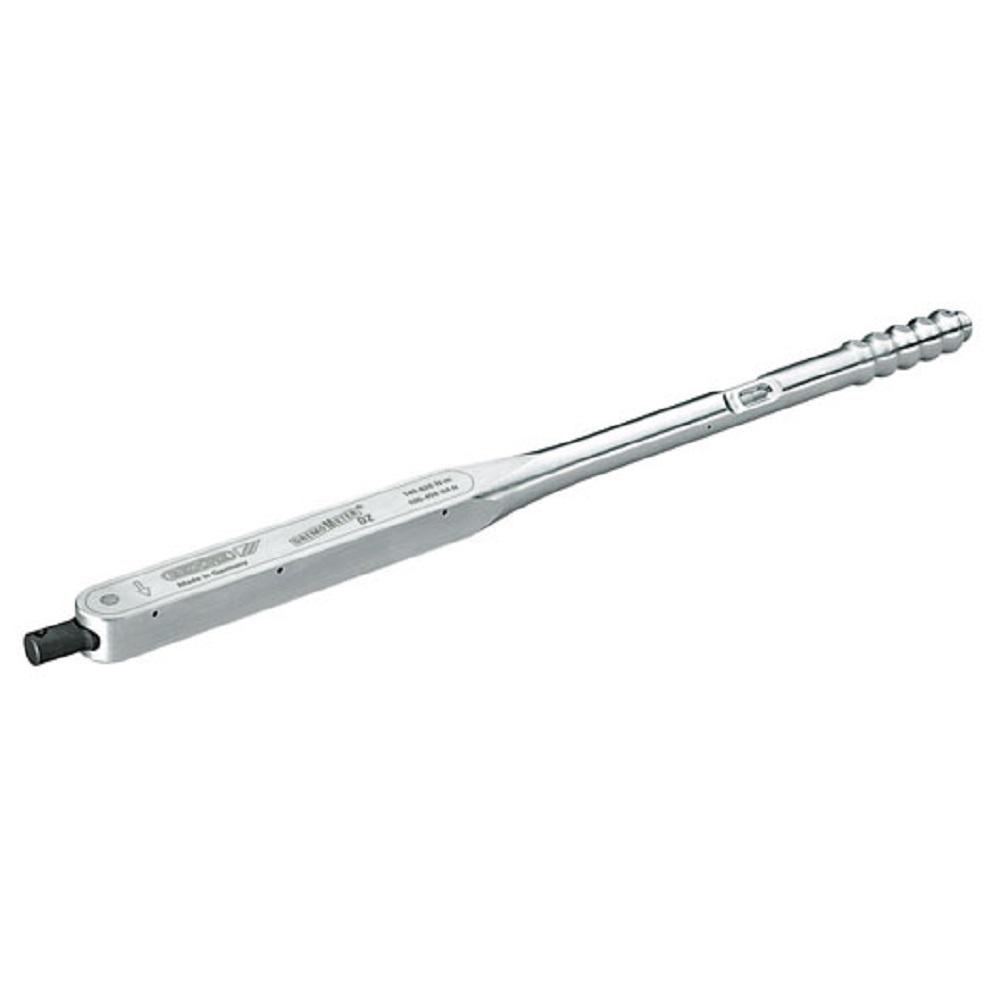

Torque wrench DREMOMETER DXZ A + S - 28Z - 520 to 1000 Nm
| € 1.527,59 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
743137471010
Product Description
- Torque wrench DREMOMETER DXZ A + S 28Z - for precise adjustment of tightening tension from 520 to 1000 Nm
- Increased process reliability for the user through locking and securing (A + S) - no accidental or manipulated adjustment
- Classified according to DIN EN ISO 6789: 2003 Type II Class A - with traceable factory certificate
- calibrated to a permissible deviation of +/- 3% and better
- the specification of the standard (+/- 4%) is exceeded
- light but robust - case made from one piece of aluminum
- Insensitive - very workshop-friendly
- Depending on the tool insert, it is possible to work both to the front (eg slip-on wrench) or to the side (eg reversible ratchet and socket insert)
- Actuation only at the handle center - do not use an extension tube
- Actuation only with clip-on tools with uniform gauge
- large tool receiving cross-section of the pin transmits maximum torques
- extremely low wear due to reduction in the forces of the lever mechanism
- Forged lever chain from the group's own quality forge
- highest precision even with heavy continuous use
- long life and long service life
- simple operation - fast and safe tightening torque
- comfortable adjustment by captive adjustment knob at the end of the handle
- Fixed DREMOMETERS for series production - wherever the same value must be applied
- Drive mount, tenon - 28 mm
- Working / measuring range N · m (min / max) - 520 to 1000 Nm
- Working / measuring range lbf · in (min / max) - 380 to 730 lbf · ft
- Scale graduation - 10 N · m / 10 lbf · ft
- Distance between handle center and pivot point - 1,221.0 mm
- Gauge (C, L) - 75 mm
- Width - 45 mm
- Distance screw center to pivot point - 57 mm
- Distance housing - center drive - 17.5 mm
- Length - 1,319 mm
