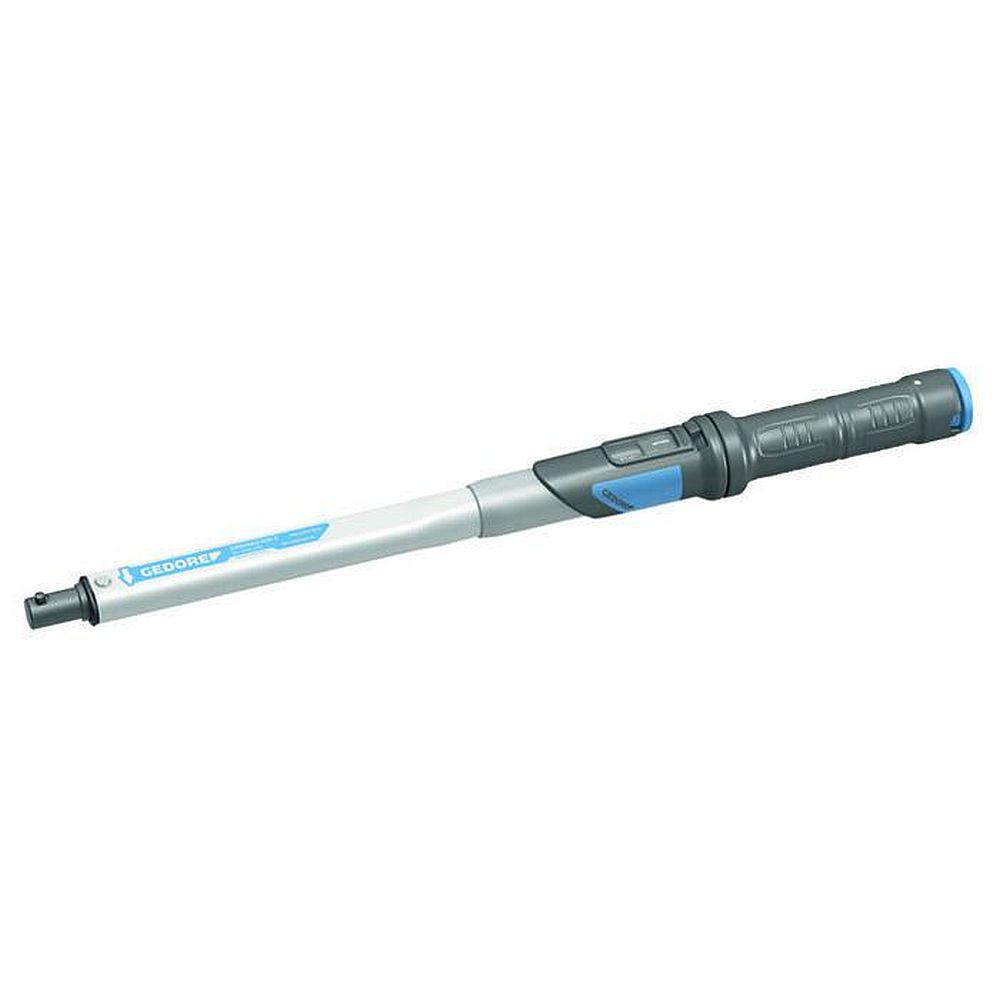

Torque wrench DREMASTER Z - Pivot drive mount - 20 to 850 N · m

From € 183,32
Price incl. VAT
In 7 variations available
Please Choose Version...

Do you have any questions?
We would like to assist you!
verkauf@esska.de

Product Description
  • Torque wrench DREMASTER Z - for controlled tightening in the most common range from 20 to 850 N · m / 15 to 630 lbf · ft
Application
  • Application
  • adjustable, triggering and robust tube torque wrench with spigot receptacle for industry and trade
  • Classified according to DIN EN ISO 6789: 2003 Type II Class A
  • calibrated to a permissible deviation of +/- 3% and better
  • for the controlled bi-directional tightening
  • Robust tubular steel construction with phosphated pin holder and high-quality plastic parts
  • Ergonomically shaped plastic handle with calibration aid
  • Switching between vernier scale N · m and secondary scale lbf · ft to avoid reading errors when setting the desired torque
  • with micrometer scale for N · m main scale for setting scale intermediate values
  • Bounce system generates a sensible and audible trigger signal
  • Ergonomic system for torque adjustment with indication symbol
  • Possibility of quick adjustment by angled screwdriver (not included)
  • secured adjustment adjustment system
  • Factory calibration gauge - 32 mm (Ø 16 mm) or 56 mm (Ø 22 mm)
  • Actuation only with clip-on tools with uniform gauge - otherwise there may be value shifts
  • Depending on the tool insert, it is possible to work both to the front (eg slip-on wrench) or to the side (eg reversible ratchet and socket insert)
Technical Data
  • Drive pin - 16 mm or 22 mm Ø
  • Working / measuring range N · m - 20 to 850 N · m
  • Working / measuring range lbf · ft - 15 to 630 lbf · ft
  • Distance between handle center and pivot point (lw) - 326.2 to 1259.4 mm
  • Length - 405.5 to 1340.7 mm
show more...
show less...
Versions: (7)
Narrow down your selection
Ø cones
length
N · m
lbf · ft
lw
show all 7 implementations
Anzeigen als list Table
Item No.: 94313DMZ1000
Type
Ø cones16 mm
length405.5 mm
N · m20 - 100
lbf · ft15 - 75
lw326.2 mm
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 183,32
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: 94313DMZ2000
Type
Ø cones16 mm
length496.5 mm
N · m40-200
lbf · ft30 - 150
lw417.2 mm
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 215,30
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: 94313DMZ3000
Type
Ø cones16 mm
length587.4 mm
N · m60 - 300
lbf · ft45 - 220
lw508.1 mm
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 257,14
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: 94313DMZ40000
Type
Ø cones16 mm
length677.2 mm
N · m80 - 400
lbf · ft60 - 300
lw597.9 mm
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 343,27
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: 94313DMZ5500
Type
Ø cones22 mm
length912.7 mm
N · m110 - 550
lbf · ft80-405
lw831.4 mm
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 589,32
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: 94313DMZ7500
Type
Ø cones22 mm
length1,193.7 mm
N · m150 - 750
lbf · ft110 - 550
lw1121.7 mm
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 687,74
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: 94313DMZ8500
Type
Ø cones22 mm
length1,340.7 mm
N · m250 - 850
lbf · ft185-630
lw1259.4 mm
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 1.007,62
Price incl. VAT
Ex stock within 4 days deliverable
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
Ratings


No evaluation has been given
Search terms: torque wrench, pin receiver, tightening, Tubular torque wrench, steel tube, scaling, torque, Industry, craft, Gedore
