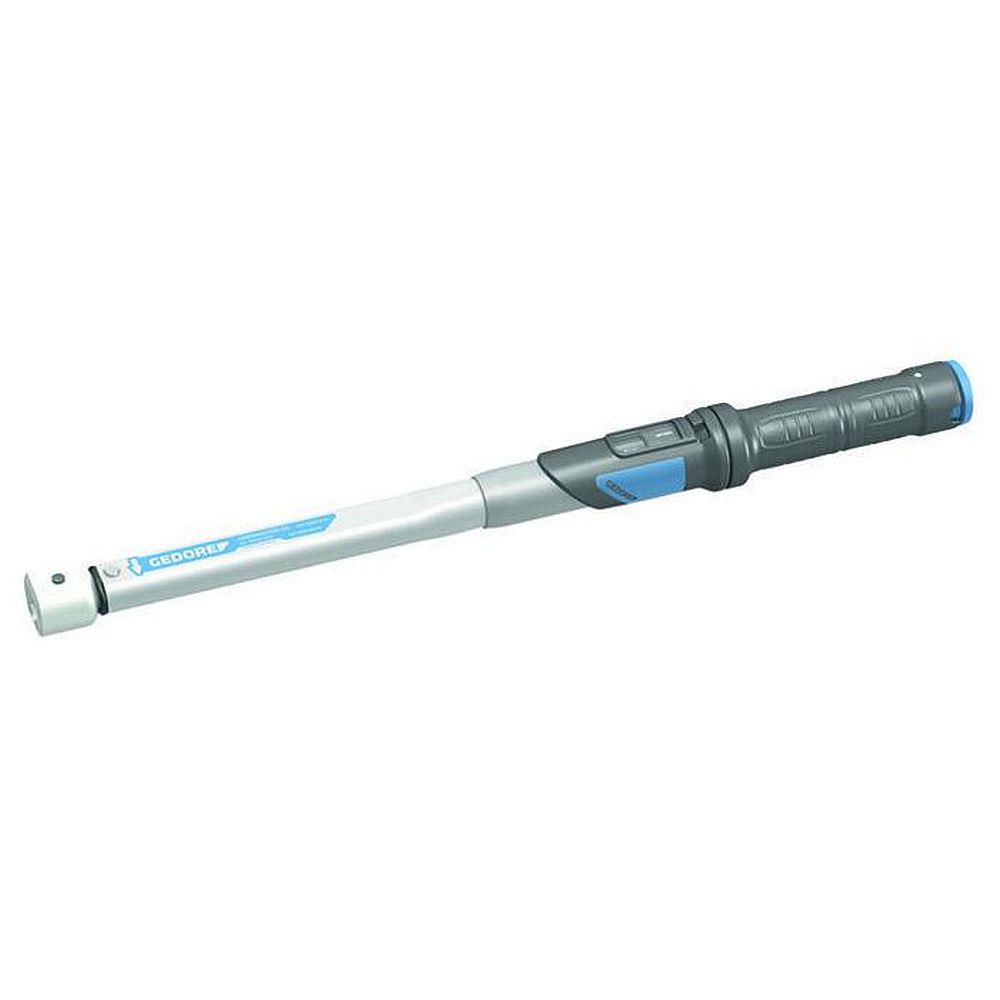

Torque wrench DREMASTER® SE - with rectangular mounting - 20 to 400 N · m
| From € 207,93 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- Torque wrench DREMASTER ® SE - for controlled tightening in the most common range from 20 to 400 N · m / 15 to 300 lbf · ft
- Application
- adjustable, triggering and robust tube torque wrench with rectangular receptacle for industry and trade
- Classified according to DIN EN ISO 6789: 2003 Type II Class A
- calibrated to a permissible deviation of +/- 3% and better
- for the controlled bi-directional tightening
- Robust tubular steel construction with galvanized rectangular receiver and high-quality plastic parts
- Ergonomically shaped plastic handle with calibration aid
- Switching between vernier scale N · m and secondary scale lbf · ft to avoid reading errors when setting the desired torque
- with micrometer scale for N · m main scale for setting scale intermediate values
- Bounce system generates a sensible and audible trigger signal
- Ergonomic system for torque adjustment with indication symbol
- Possibility of quick adjustment by angled screwdriver (not included)
- secured adjustment system
- Factory calibration gauge - 17.5 mm (9x12 mm) or 25 mm (14x18 mm)
- Actuation only with clip-on tools with uniform gauge - otherwise there may be value shifts
- Depending on the use of the tool, it is possible to work both forwards (eg insertable spanner) or to the side (eg reversible ratchet and socket insert)
- Drive box Rectangle - 9 x 12 to 14 x 18 mm
- Working / measuring range N · m - 20 to 400 N · m
- Working / measuring range lbf · ft - 15 to 300 lbf · ft
- Distance between handle center and pivot point (lw) - 326.2 to 604.9 mm
- Length - 398.5 to 672.2 mm
Versions: (5)
Narrow down your selection
square drive
length
N · m
lbf · ft
lw
Item No.: 94313DMSE100
Type
| square drive | 9 x 12 mm |
| length | 398.5 mm |
| N · m | 20 - 100 |
| lbf · ft | 15 - 75 |
| lw | 326.2 mm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 207,93 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 94313DMSE150
Type
| square drive | 9 x 12 mm |
| length | 489.5 mm |
| N · m | 30 - 150 |
| lbf · ft | 22 - 110 |
| lw | 417.2 mm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 232,54 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 94313DMSE200
Type
| square drive | 14 x 18 mm |
| length | 499.5 mm |
| N · m | 40-200 |
| lbf · ft | 30 - 150 |
| lw | 427.2 mm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 236,22 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 94313DMSE300
Type
| square drive | 14 x 18 mm |
| length | 590.4 mm |
| N · m | 60 - 300 |
| lbf · ft | 45 - 220 |
| lw | 518.1 mm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 276,82 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 94313DMSE400
Type
| square drive | 14 x 18 mm |
| length | 677.2 mm |
| N · m | 80 - 400 |
| lbf · ft | 60 - 300 |
| lw | 604.9 mm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 404,78 |
| Price incl. VAT |
Delivery within 14 days after order confirmation
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
