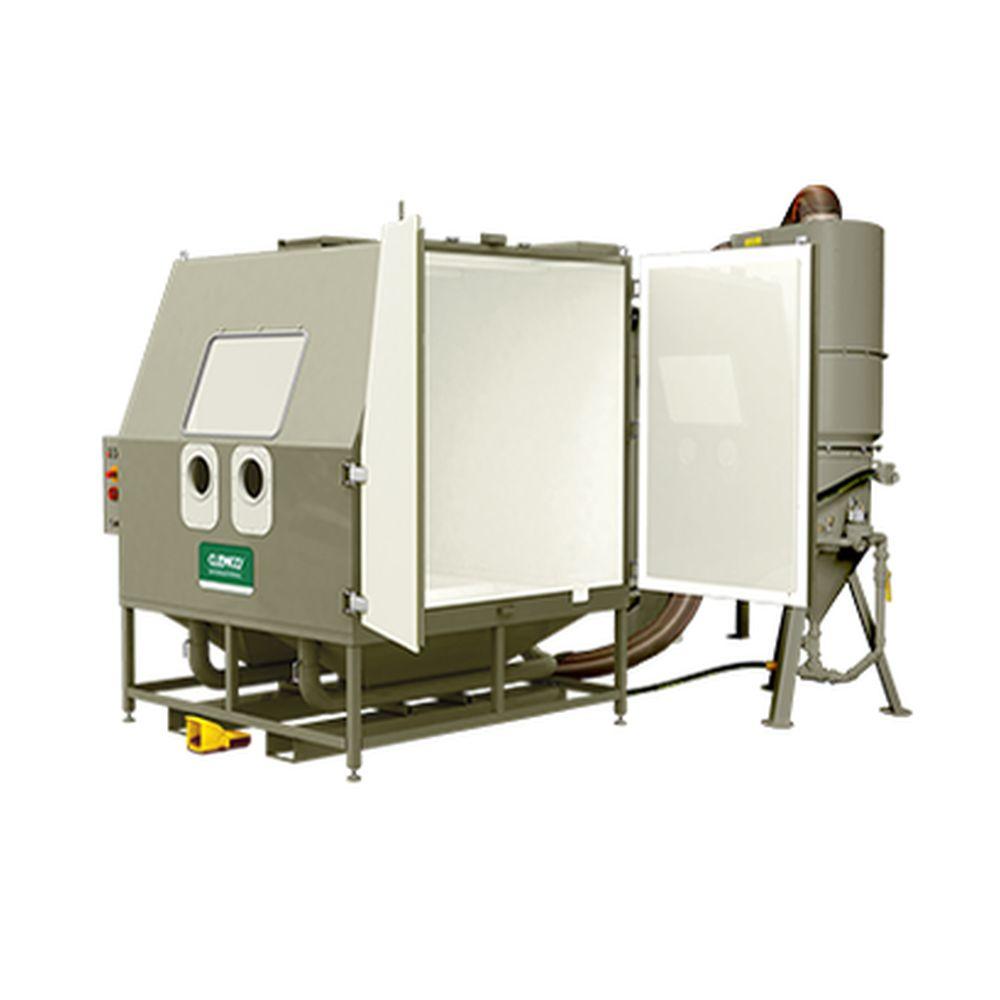

Suction Blast Cabin PULSATR VI - Completely Equipped

€ 33.372,22
Price incl. VAT
Delivery time 7-10 working days

Do you have any questions?
We would like to assist you!
verkauf@esska.de

Item No.:
157221180180
Product Description
  • The blast material is pressed by a special pressure vessel under pressure to the blast nozzle
  • The high abrasive material proportion in the air flow results in a high blasting capacity and even spray pattern
  • That blast material and abrasive material dust are exhausted by a cyclone cleaner
  • The cyclone cleaner separates dust and still usable blast grain
  • The usable abrasive material falls through a lattice in the cyclone cleaner into the pressure vessels and is available again
  • The blasting abrasive dust is eliminated through a filter cartridge
  • The blast gun is operated over a foot switch
  • The blasting pressure is adjustable
  • Workpieces are put into the cabin by an extra large front flap or by a lateral door
Application
  • Application
  • Industrial large chamber blast cabin for blast cleaning, paint removing, derusting, descale, matting and roughening of surfaces
  • Recommended for industrial blast cleaning works
Technical Data
  • Work Room Dimensions - WxDxH 1800 x 1800 x 1600 mm
  • Total Height - 2.250 mm
  • Air Consumption - 500 to 7000 l/min
  • Max. Abrasive Grain - 3.0 mm
  • Power Supply - 380 V / 50Hz
  • SCOPE OF SUPPLY
  • Blasting Cabin
  • Cyclone Separator - Capacity 1.524 m³/h
  • Filtering Unit
  • Air Output - 1.524 m³/h
  • Filtering Surface - 18,8 m²
  • Motor - 380 V / 2,2 kW
  • Pressure Vessel - 100 l Volume
  • Light
  • Boron carbide nozzle Ø 8mm
  • Cabin Control
show more...
show less...
Ratings


No evaluation has been given
Search terms: blasting cabin, blast cabin, sandblasting cabins, sandblasting cabin, abrasive blast
