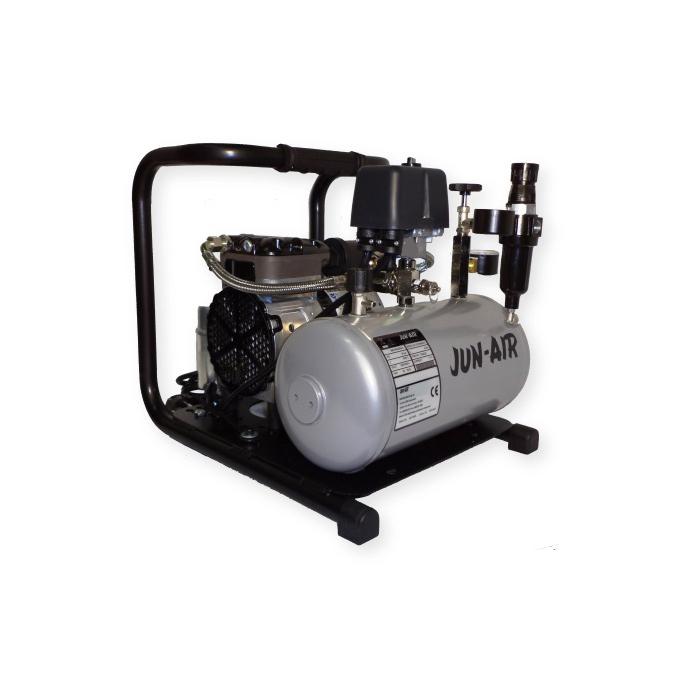

Single-cylinder Pendelhubkompressor "Model 86R-4B" - oil-free - 4-liter pressure vessel
| € 2.052,99 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
201417604200
Product Description
- Single-cylinder pendulum stroke compressor is designed for 100% continuous operation to generate compressed air.
- Single-cylinder pendulum-stroke compressor mounted on frame
- With automatic water separator
- Patented guidance of the air flow in the cylinder head causes the reduction of the sound
- Provides optimal cooling
- Extremely long service life of 10,000 hours for the piston seals
- Suction capacity - 341 l / min
- Delivery rate - 12.5 l / min at 8 bar
- Volume - 55 dB (A)
- Cylinder per compressor -1
- Pressure vessel volume - 4 l
- Permissible ambient temperature - + 1 ° C to + 40 ° C
- Supply voltage - 230 V, 50 Hz
- Engine power - 0.25 kW
- Power consumption - 1.7 A
- Thermal protection - integrated
- Duty cycle - 100%
- Weight - 15.6 kg
- Dimensions (LxWxH) - 404 x 306 x 338 mm
