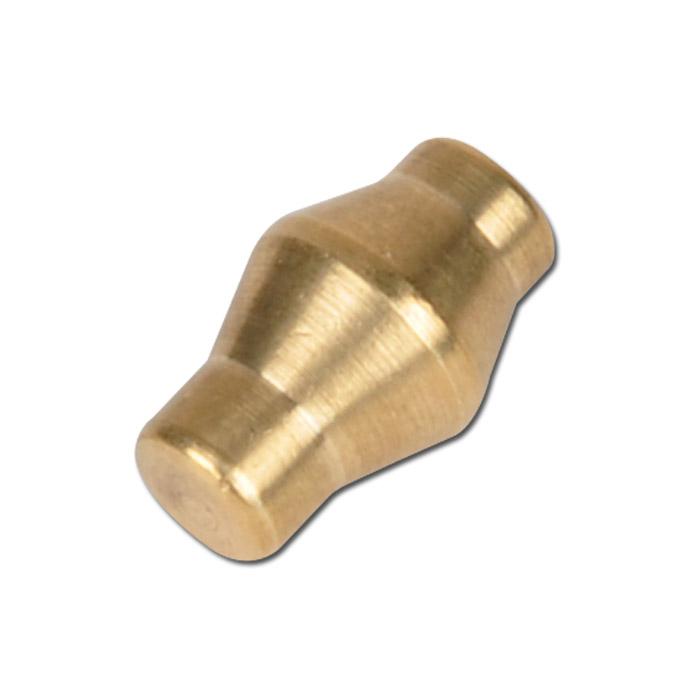

Screw plugs - brass - for compression fittings - for external pipe Ø 4 to 14 mm - PN 78 to 150

(Exemplary presentation)
From € 1,11
Price incl. VAT
In 10 variations available
Please Choose Version...

Do you have any questions?
We would like to assist you!
verkauf@esska.de

Product Description
  • The sealing plug is ideal for securely closing compression fittings.
Application
  • The sealing plug is made of brass and is inserted between the fitting itself and the union nut.
  • The specified maximum operating pressure refers to use with hard copper pipes. For soft copper pipes, a correction factor of 0.65 (pressure x 0.65) must be applied. When using polyamide pipes, the operating pressure of the respective pipe applies.
Technical Data
  • Material - brass
  • Outer tube Ø - 4 to 14 mm
  • max. operating pressure - 75 to 150 bar
  • Temperature range - -60 to +300 °C
show more...
show less...
5.0 / 5.0
Total Reviews
1 Reviews
to the reviews
Versions: (10)
Narrow down your selection
for external pipe Ø
max. operating pressure
show all 10 implementations
Anzeigen als list Table
Item No.: kbuz20411007
Type
for external pipe Ø4 mm
max. operating pressure150 bar
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 1,11
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: kbuz20411009
Type
for external pipe Ø6 mm
max. operating pressure150 bar
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 1,37
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: kbuz20411010
Type
for external pipe Ø8 mm
max. operating pressure135 bar
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 1,61
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: kbuz20411000
Type
for external pipe Ø10 mm
max. operating pressure95 bar
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 1,81
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: kbuz20411001
Type
for external pipe Ø12 mm
max. operating pressure75 bar
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 2,11
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: kbuz20411002
Type
for external pipe Ø14 mm
max. operating pressure89 bar
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 2,59
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: kbuz20411003
Type
for external pipe Ø15 mm
max. operating pressure82 bar
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 5,22
Price incl. VAT
Ex stock within 4 days deliverable
Item No.: kbuz20411004
Type
for external pipe Ø16 mm
max. operating pressure76 bar
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 4,06
Price incl. VAT
Delivery within 7-10 days
Item No.: kbuz20411005
Type
for external pipe Ø18 mm
max. operating pressure67 bar
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 2,56
Price incl. VAT
Delivery within 7-10 days
Item No.: kbuz20411006
Type
for external pipe Ø22 mm
max. operating pressure54 bar
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
€ 3,06
Price incl. VAT
Delivery within 7-10 days
