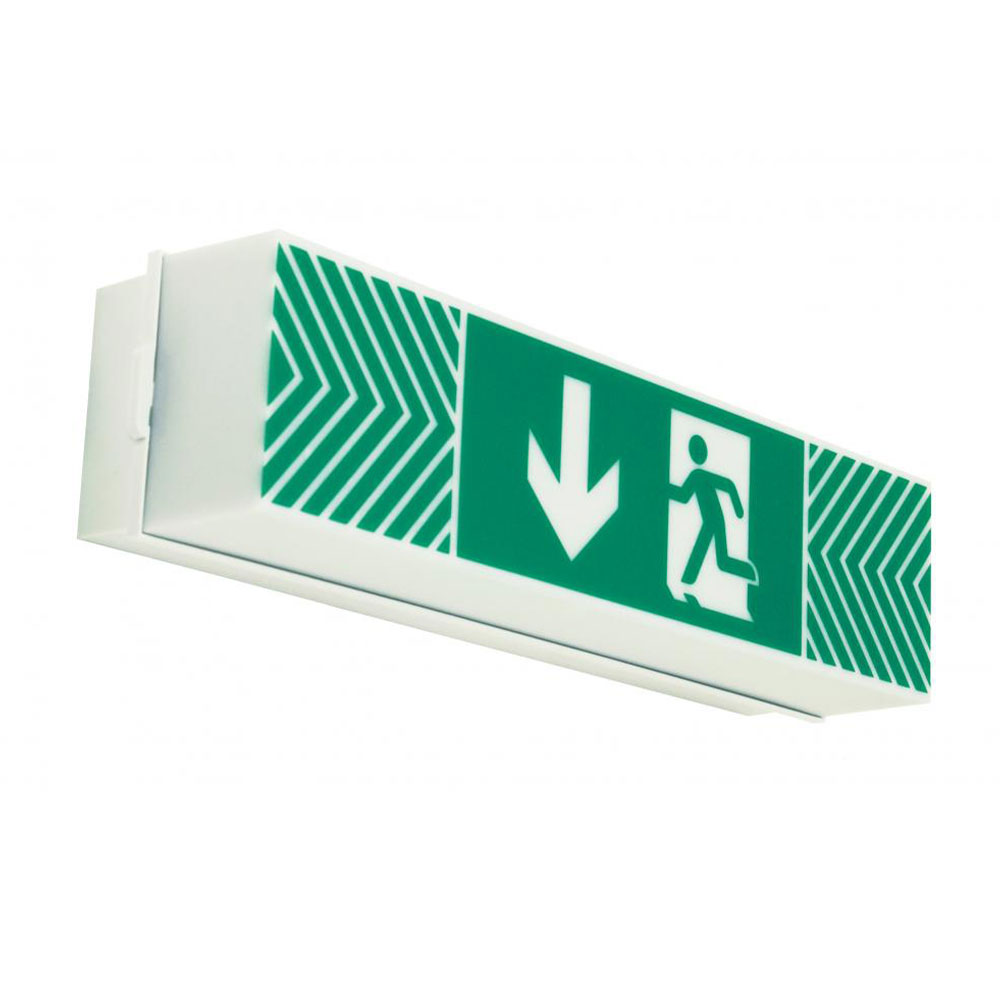

Safety / exit sign luminaire C-LUX CLASSIC - polycarbonate housing - with AUTOTEST function or central supply - different versions
| € 80,00 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The C-LUX CLASSIC safety / escape sign luminaire is ideal for use in hotels, assembly centers, universities, football stadiums, office buildings, shops, banks, shopping centers, swimming pools, schools and hospitals in accordance with DIN EN 60598-2-22, EN 1838, EN 62034 , and DIN VDE 0108.
- Depending on the version, the luminaire has an automatic test function AUTOTEST, including a test button, signaling is via a multi-colored LED.
- The safety light can be switched from permanent to standby mode.
- The luminaire is suitable for wall and ceiling construction.
- The pictograms are installed on the polycarbonate cover (PVC film, self-adhesive).
- By pulling off the cover, the luminaire can be installed without tools.
- The operating voltage for the central supply is available in special voltages on request.
- The scope of delivery includes a standard set of signs (emergency exit, escape route on the right, escape route on the left, escape route straight ahead) in accordance with DIN EN ISO 7010.
- Pendulum sets are optionally available.
- The luminaire is equipped with the CE mark and ATEX test certificate.
- The manufacturer's guarantee is five years.
- Housing material - polycarbonate, impact-resistant, break-proof
- Cover material - polycarbonate, opal, impact-resistant, break-proof
- Material pictogram - PVC film
- Color - RAL 9003 (white)
- Single battery versions AUTOTEST function or central supply (see variants)
- for single-battery versions
- Mains voltage - 230 V AC
- Power consumption - DS - max. 9 VA, BS - max. 4.4 VA
- Degree of protection - IP 54
- Protection class - II
- Emergency light - 3 and 8 hours (adjustable via the jumper provided)
- Battery - LiFeP04 3.2 V / 1.6 Ah
- Permanent and standby switching
- Luminous flux - 120 lm (mains operation) / 120 lm (emergency operation) 3 hours, 120 lm (mains operation) / 50 lm (emergency operation) 8 hours
- Light source - LED max. 1.2 W
- Detection distance - 18 meters
- available with integrated monitoring module (see variant)
- Dimensions - 372 x 128 x 94 mm
- for central supply
- Mains voltage - 230 V AC / 170 - 260 V DC
- Connected load - AC max. 4.6 VA, DC max. 1.9 W.
- Degree of protection - IP 54
- Protection class - II
- Permanent and standby switching
- Light source - LED max. 3.6 W.
- Detection distance - 18 meters
- available with integrated monitoring module (see variant)
- Dimensions - 372 x 128 x 94 mm
Including standard set of signs
Versions: (1)
Narrow down your selection
Test function
emergency light
Area of application
Dimensions
Recognition distance
Power consumption
Mains voltage
Item No.: 7678BL565030
Type
| Test function | AUTOTEST function |
| emergency light | 3 and 8 hours (adjustable) |
| Area of application | Single battery version (LiFeP04 3.2 V / 1.6 Ah) |
| Dimensions | 372 x 128 x 94 mm |
| Recognition distance | 18 meters |
| Power consumption | DS - max. 9 VA, BS - max.4.4 VA |
| Mains voltage | 230 VA C 50 to 60 Hz |
| € 80,00 |
| Price incl. VAT |
Delivery time 2 - 4 working days
Ratings
No evaluation has been given
