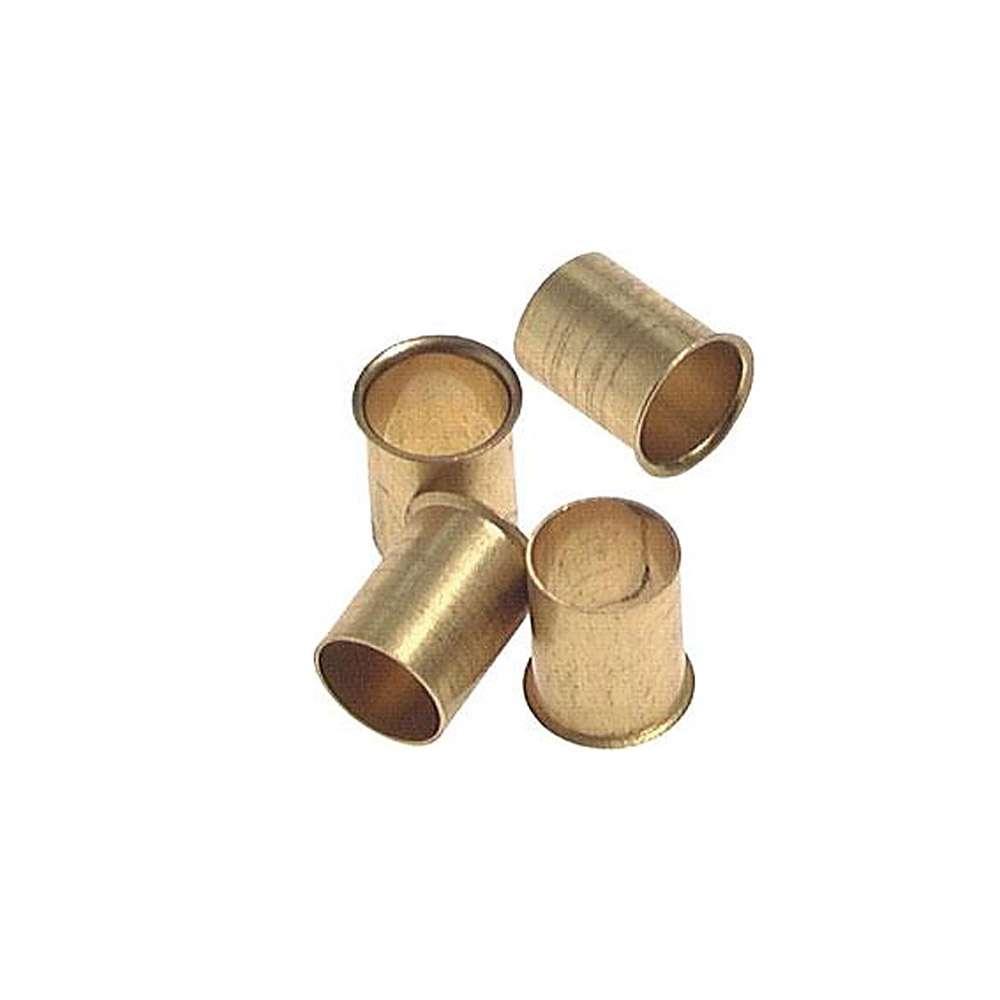

Reinforcing sleeve - brass - with collar - for external tube Ø 4 to 28 mm (min.) - for internal tube Ø 2 to 25 mm
(Exemplary presentation)
| € 7,98 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
858911471022
Type
| Sleeve Ø inside | 23 mm |
| Outer sleeve Ø | 27.4 mm |
| for external pipe Ø (min.) | 28 mm |
| for pipe Ø inside | 25 mm |
| Length | 36 mm |
Product Description
- The reinforcement sleeve is ideal for reinforcing thin-walled steel, copper or plastic pipes when using cutting and compression fittings.
- The reinforcement sleeve is made of brass and has a collar.
- Material - brass
- for external pipe Ø (min.) - 4 to 28 mm
- for pipe Ø inside - 2 to 25 mm
The specified inner and outer diameters refer to the pipe diameters that are to be reinforced by the reinforcement sleeve, not to the diameter of the sleeve itself.\nFor more information, please refer to our product data sheet.
Versions: (21)
Narrow down your selection
Sleeve Ø inside
Outer sleeve Ø
for external pipe Ø (min.)
for pipe Ø inside
Length
Item No.: 858911471000
Type
| Sleeve Ø inside | 1.6 mm |
| Outer sleeve Ø | 3.2 mm |
| for external pipe Ø (min.) | 4 mm |
| for pipe Ø inside | 2 mm |
| Length | 10 mm |
Item No.: 858911471001
Type
| Sleeve Ø inside | 2.2 mm |
| Outer sleeve Ø | 3.2 mm |
| for external pipe Ø (min.) | 4 mm |
| for pipe Ø inside | 2.7 mm |
| Length | 10 mm |
Item No.: 858911471002
Type
| Sleeve Ø inside | 2.5 mm |
| Outer sleeve Ø | 4.2 mm |
| for external pipe Ø (min.) | 5 mm |
| for pipe Ø inside | 3 mm |
| Length | 10 mm |
Item No.: 858911471003
Type
| Sleeve Ø inside | 3.5 mm |
| Outer sleeve Ø | 5.2 mm |
| for external pipe Ø (min.) | 6 mm |
| for pipe Ø inside | 4 mm |
| Length | 12 mm |
| € 0,14 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Minimum order quantity: 10 (= € 1,44)
Item No.: 858911471005
Type
| Sleeve Ø inside | 5.2 mm |
| Outer sleeve Ø | 7.3 mm |
| for external pipe Ø (min.) | 8 mm |
| for pipe Ø inside | 6 mm |
| Length | 14 mm |
Item No.: 858911471006
Type
| Sleeve Ø inside | 6.2 mm |
| Outer sleeve Ø | 8.9 mm |
| for external pipe Ø (min.) | 10 mm |
| for pipe Ø inside | 7 mm |
| Length | 17 mm |
Item No.: 858911471007
Type
| Sleeve Ø inside | 7 mm |
| Outer sleeve Ø | 8.9 mm |
| for external pipe Ø (min.) | 10 mm |
| for pipe Ø inside | 8 mm |
| Length | 16 mm |
Item No.: 858911471008
Type
| Sleeve Ø inside | 8 mm |
| Outer sleeve Ø | 10.9 mm |
| for external pipe Ø (min.) | 12 mm |
| for pipe Ø inside | 9 mm |
| Length | 16.0 mm |
Item No.: 858911471009
Type
| Sleeve Ø inside | 9 mm |
| Outer sleeve Ø | 10.9 mm |
| for external pipe Ø (min.) | 12 mm |
| for pipe Ø inside | 10 mm |
| Length | 16 mm |
Item No.: 858911471010
Type
| Sleeve Ø inside | 10 mm |
| Outer sleeve Ø | 12.9 mm |
| for external pipe Ø (min.) | 14 mm |
| for pipe Ø inside | 11 mm |
| Length | 16 mm |
Item No.: 858911471011
Type
| Sleeve Ø inside | 11 mm |
| Outer sleeve Ø | 12.9 mm |
| for external pipe Ø (min.) | 14 mm |
| for pipe Ø inside | 12 mm |
| Length | 18 mm |
Item No.: 858911471012
Type
| Sleeve Ø inside | 12 mm |
| Outer sleeve Ø | 15 mm |
| for external pipe Ø (min.) | 15 mm |
| for pipe Ø inside | 13 mm |
| Length | 18 mm |
Item No.: 858911471013
Type
| Sleeve Ø inside | 13 mm |
| Outer sleeve Ø | 15.9 mm |
| for external pipe Ø (min.) | 16 mm |
| for pipe Ø inside | 14 mm |
| Length | 18 mm |
Item No.: 858911471014
Type
| Sleeve Ø inside | 13 mm |
| Outer sleeve Ø | 15.9 mm |
| for external pipe Ø (min.) | 18 mm |
| for pipe Ø inside | 14 mm |
| Length | 18 mm |
Item No.: 858911471015
Type
| Sleeve Ø inside | 13.5 mm |
| Outer sleeve Ø | 16.3 mm |
| for external pipe Ø (min.) | 18 mm |
| for pipe Ø inside | 15 mm |
| Length | 26 mm |
Item No.: 858911471016
Type
| Sleeve Ø inside | 15 mm |
| Outer sleeve Ø | 17.5 mm |
| for external pipe Ø (min.) | 18 mm |
| for pipe Ø inside | 16 mm |
| Length | 19.5 mm |
Item No.: 858911471017
Type
| Sleeve Ø inside | 15 mm |
| Outer sleeve Ø | 17.5 mm |
| for external pipe Ø (min.) | 20 mm |
| for pipe Ø inside | 16 mm |
| Length | 19.5 mm |
Item No.: 858911471018
Type
| Sleeve Ø inside | 16.4 mm |
| Outer sleeve Ø | 19.4 mm |
| for external pipe Ø (min.) | 20 mm |
| for pipe Ø inside | 18 mm |
| Length | 28 mm |
Item No.: 858911471019
Type
| Sleeve Ø inside | 16.7 mm |
| Outer sleeve Ø | 21.8 mm |
| for external pipe Ø (min.) | 22 mm |
| for pipe Ø inside | 18 mm |
| Length | 20 mm |
Item No.: 858911471020
Type
| Sleeve Ø inside | 18.4 mm |
| Outer sleeve Ø | 21.4 mm |
| for external pipe Ø (min.) | 22 mm |
| for pipe Ø inside | 20 mm |
| Length | 30 mm |
Item No.: 858911471022
Type
| Sleeve Ø inside | 23 mm |
| Outer sleeve Ø | 27.4 mm |
| for external pipe Ø (min.) | 28 mm |
| for pipe Ø inside | 25 mm |
| Length | 36 mm |
