Push-in nipple pipe - Brass 2.0401 - DN 5 or 6 - Outer pipe Ø 8 or 10 mm - PN max. 15 bar - Length 63 to 360 mm - Price per piece

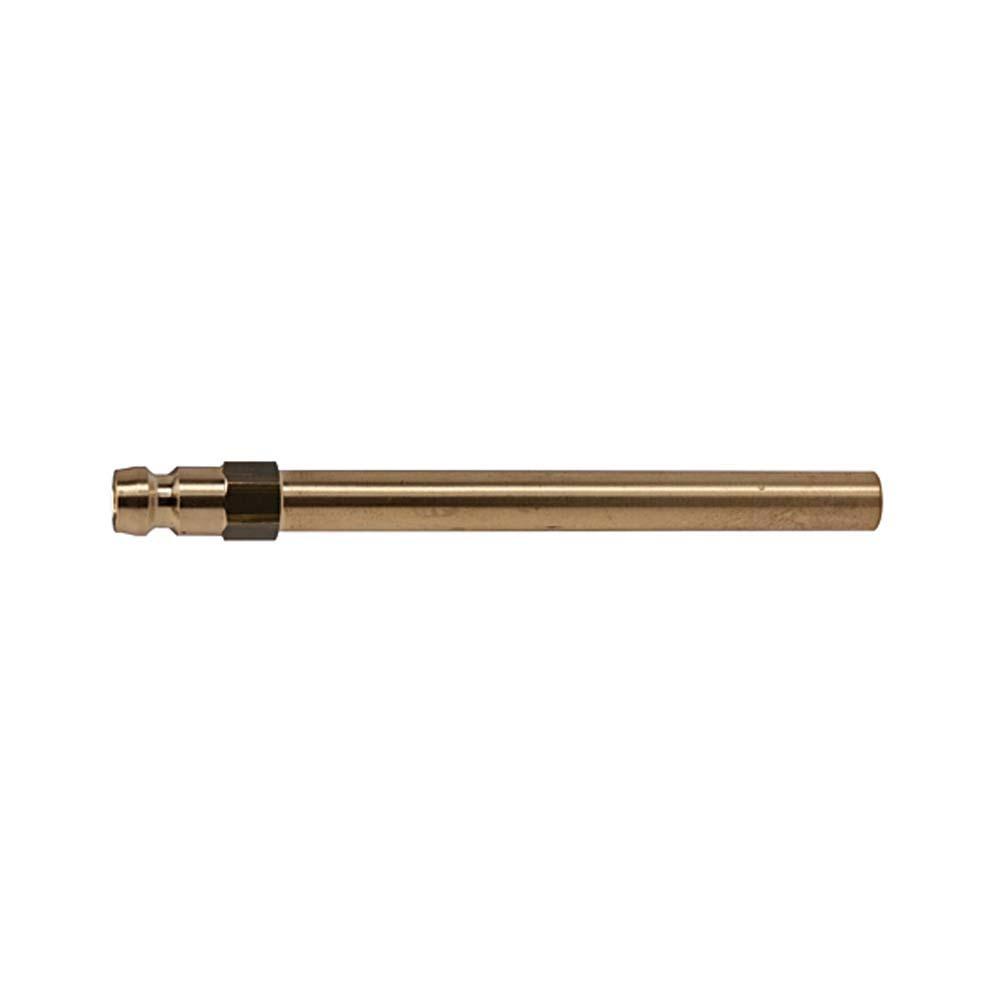

(Exemplary presentation)
| From € 5,64 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The plug-in nipple pipe is used in temperature control applications with hot or cold water and temperature control oil, for example in cooling circuits of plastic machines.
- Areas of application include plastics processing, mechanical engineering and the manufacturing industry, where precise temperature control plays a role in cooling and temperature control processes.
- The plug-in nipple pipe is made of brass and is compatible with the HASCO Z 8 system.
- It is equipped with an inner cone in accordance with DIN 3863.
- Material - brass 2.0401
- Material ball - stainless steel
- Spring material - stainless steel
- Material snap ring - stainless steel
- Sealing material - FKM (PTFE-coated)
- Medium - air, water, oil, vacuum
- Max. operating pressure - 15 bar
- Nominal size - 5 or 6
- Tube outer diameter - 8 or 10 mm
- Medium temperature - -20°C to 160°C
- Ambient temperature - -20°C to 160°C
- SW - 9 or 11 mm
- Length - 63.0 to 360.0 mm
Versions: (7)
Narrow down your selection
Materials
Connection
Item No.: kstr21391005
Type
| Materials | Brass |
| Connection | Tube outer Ø 8 mm |
| € 5,64 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: kstr21391000
Type
| Materials | Brass |
| Connection | Tube outer Ø 8 mm |
| € 7,04 |
| Price incl. VAT |
Delivery time 2 - 4 working days
Item No.: kstr21391006
Type
| Materials | Brass |
| Connection | Tube outer Ø 10 mm |
| € 6,53 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: kstr21391001
Type
| Materials | Brass |
| Connection | Tube outer Ø 10 mm |
| € 7,01 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: kstr21391002
Type
| Materials | Brass |
| Connection | Tube outer Ø 10 mm |
| € 7,01 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: kstr21391003
Type
| Materials | Brass |
| Connection | Tube outer Ø 10 mm |
| € 17,53 |
| Price incl. VAT |
Delivery time 2 - 4 working days
Item No.: kstr21391004
Type
| Materials | Brass |
| Connection | Tube outer Ø 10 mm |
| € 32,82 |
| Price incl. VAT |
Delivery time 2 - 4 working days
