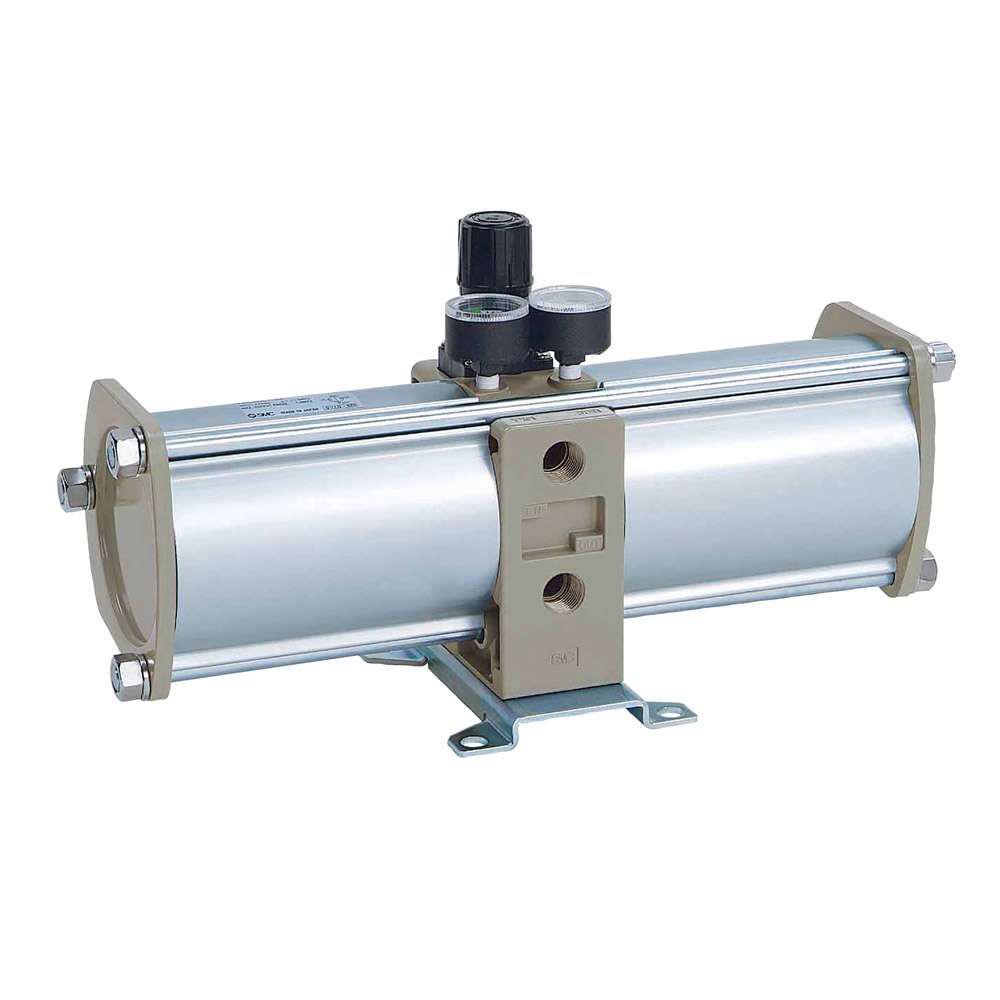

Pressure Regulators - Series VBA - Type VBA40A-F04GN - G 1/2 "- Manometer and silencer

942,41
Price incl. VAT
plus 29,00 shipping costs
Delivery time 14 working days

Do you have any questions?
We would like to assist you!

Item No.:
201000445802
Product Description
  • The pressure booster increases the pressure in the air circuit to double the value.
Application
  • no power supply or wiring is required with the VBA series pressure booster
  • easy installation - simply insert the unit into the compressed air network
  • since no electricity is used, heat generation is very low and operation is safe
  • compared to the conventional model, the service life is extended and the operating noise is reduced
  • in addition, the built-in screen filter on the inlet side prevents malfunctions caused by foreign bodies
  • ventilation ducts are integrated directly into the cylinder barrel to reduce condensation
Technical Data
  • Medium - compressed air
  • Pressure amplification ratio - 1:2
  • max. flow rate - 1900 l/min.
  • Expression range - 0.2 to 1.0 MPa
  • Inlet pressure range - 0.1 to 1.0 MPa
  • Test pressure - 1.5 MPa
  • Connection - 1/2"
  • Pressure gauge connection size - 1/8"
  • Ambient and medium temperature - 2 to 50°C
  • Installation - horizontal
  • Weight - 8.6 kg
Ratings


No evaluation has been given
Search terms: booster, Compressed air tank, amplifier, Compressed air reinforcement, Series VBA, Power Amplifier VBA40A, SMC
