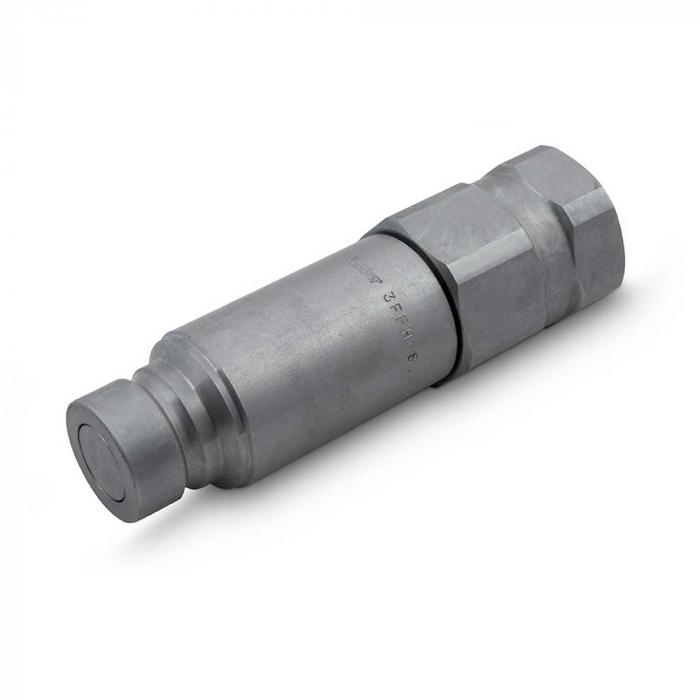

Plug-in coupling series ST-3FF - plug - galvanized steel - DN 10 - size 6 - IG UNF 3/4 "- PN 350 - according to ISO 16028
| € 45,39 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
9799ST3FF12U
Product Description
- The plug-in coupling of the ST-3FF series is ideally suited for connecting hoses and pipelines in the fields of agriculture, the construction industry, offshore applications (oil & gas) as well as vehicle and road construction.
- The plug-in coupling is made of galvanized steel and has an SAE internal thread. The seal is made of polyurethane and Teflon.
- The ST-3FF series is characterized by higher operating pressures than conventional series according to ISO 16028 and a pulse resistance of up to one million cycles in the coupled state.
- During the coupling process, thanks to a specially designed flat valve, no air is trapped in the hydraulic system and oil loss is prevented. The safety lock prevents unintentional disconnection.
- The ST-3FF series can be coupled under residual pressure on the unpressurized opposite side (ST-FF, VC-FF, ST-2FSI series). The level of the residual pressure must not exceed the maximum operating pressure of the respective component. Furthermore, the opposite side should be depressurized and open to the tank during use. Any residual pressure on the opposite side would result in an increased coupling force.
- The coupling is interchangeable in accordance with ISO 16028.
- Body material - galvanized steel
- Material seal - PU and PTFE
- Size - 2
- Nominal size - 10
- Size - 06
- Length of plug - 100.3 mm
- Connection thread - UNF 3/4 "IG
- Outer Ø connector - 19.7 mm
- Wrench size - 30 mm
- max.working pressure - 350 bar
- Temperature range - -25 to +100 Â ° C
- Resistance to red rust - 1000 hours
- Resistance to white rust - 500 hours
- Standard - ISO 16028
