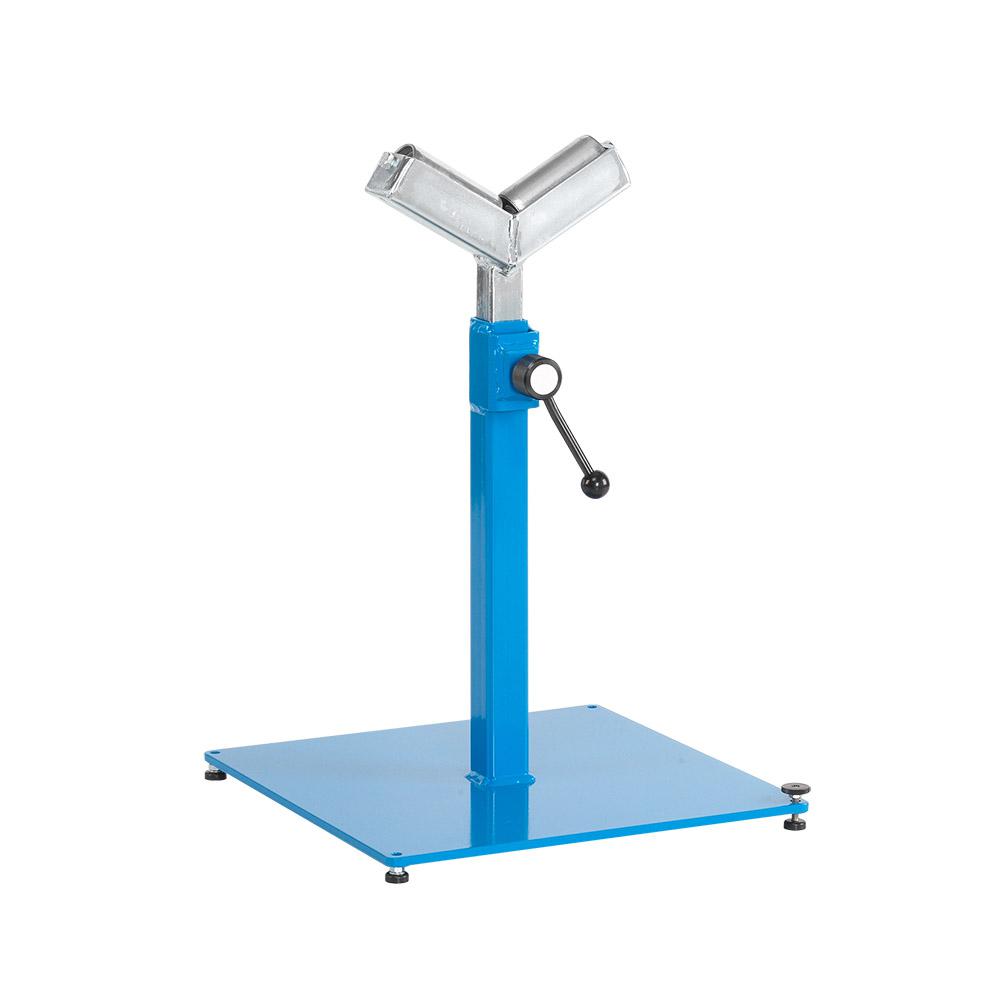

Material support stand TO-MAS - 2 support rollers in V-fork - lifting capacity 600 kg

(Exemplary presentation)
€ 702,93
Price incl. VAT
Delivery within 7-10 days

Do you have any questions?
We would like to assist you!
verkauf@esska.de

Item No.:
940900464570
Product Description
  • the TO-MAS Material support stand is ideal for hang of materials
Application
  • the material support stand are manufactured as stable, welded Stahlkonstuktion
  • the posts are powder coated in RAL 5015 sky blue and continuously adjustable height 650-1040 mm
  • the maximum surface load is 600 kg
  • 2 piece rolls, each having a length of 120 mm, for the longitudinal displacement of the round material
  • suitable for wheels with a diameter 10-350 mm at an opening angle of the V-fork 120 °
  • with lift-up to the max. height adjustment
  • the bottom plate is to provide steel with 4 adjustable feet for a safe stand
Technical Data
  • stepless height adjustment - 650-1040 mm
  • Roll width each - 120 mm
  • Dimensions base plate - 490 x 490 x 10 mm
  • Color - RAL 5015 sky blue
  • Max. Wing loading - 600 kg
  • Weight - 30 kg
show more...
show less...
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
