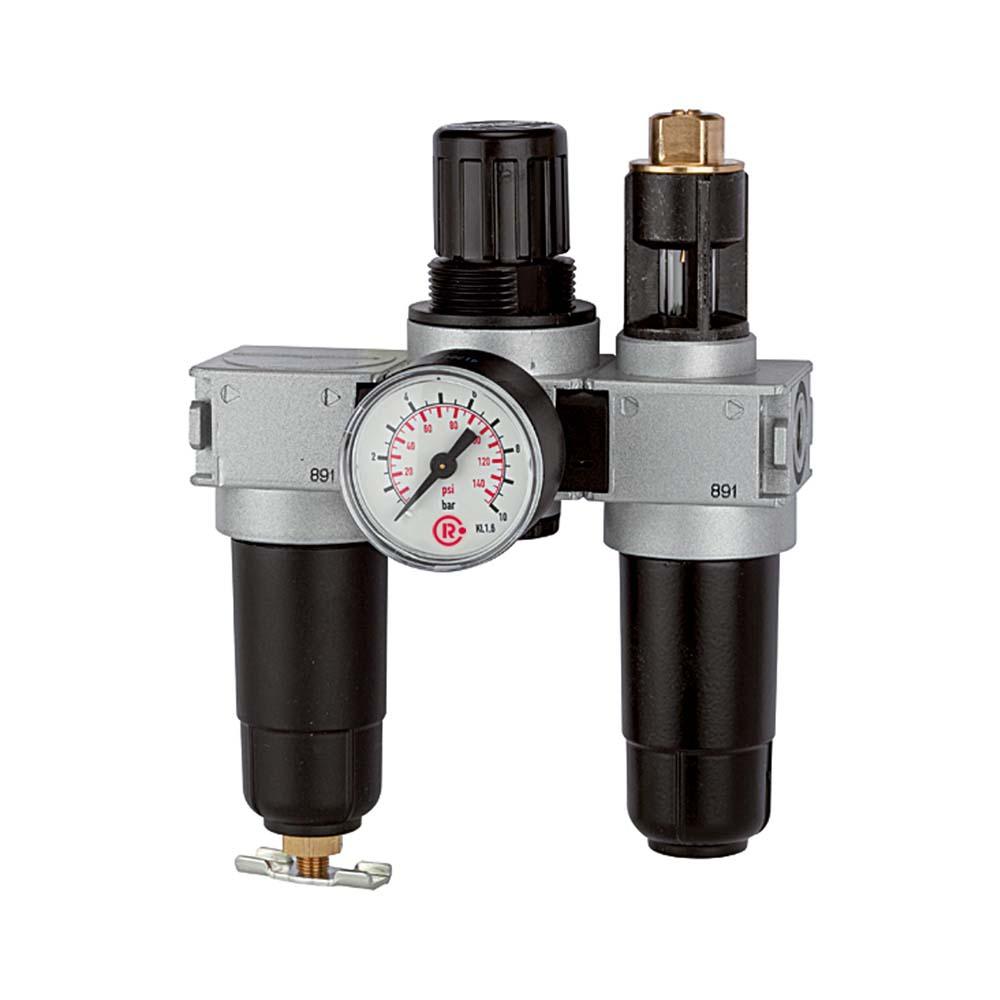

Maintenance unit multifix mini - three-part - BG 0 - G 1/8" - Inlet pressure max. 12 bar - Control range 0.5 to 10 bar
| € 150,99 |
| Price incl. VAT |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
202510040000
Product Description
- The three-part "multifix-mini" maintenance unit is used in compressed air systems and pneumatic systems.
- It offers comprehensive maintenance functions in a compact design and is ideal for the reliable treatment and regulation of compressed air.
- The three-part "multifix-mini" maintenance unit consists of a pre-pressure-independent diaphragm pressure regulator with secondary venting, a centrifugal separator and a proportional oiler.
- It is also equipped with a metal container.
- Type - FRL 05 M
- Series - multifix-mini
- Housing material - die-cast zinc
- Drip cap material - zinc-glass-NBR
- Material spring cover - POM brass
- Container material - metal
- Sealing material - NBR
- Condensate drain - semi-automatic
- Thread - G 1/8"
- BG - 0
- Inlet pressure max. - 12 bar
- Control range - 0.5 to 10 bar
- Pressure gauge display - 0 to 16 bar
- Flow rate - 750 l/min
- Flow value measurement - at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar
- Filter fineness - 5 µm
- Medium temperature - -10°C to 60°C
- Ambient temperature - -10°C to 60°C
- Nominal diameter - 5
- Width - 120.0 mm
- Height - 162.3 mm
