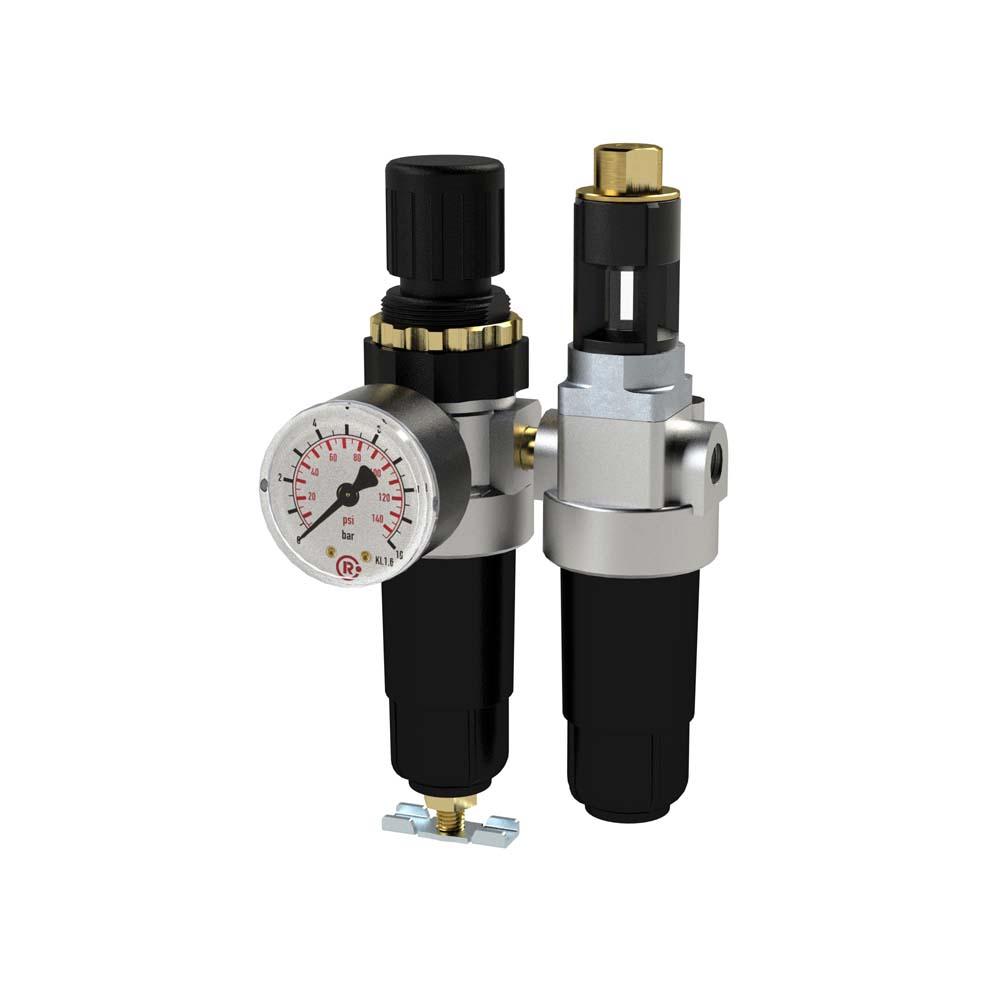

Maintenance unit "Standard-mini" - 2-part - BG 0 - G 1/8" - PE max. 25 bar - Control range 0.5 to 10 bar
| € 165,43 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
202510079900
Product Description
- The two-part "Standard-mini" maintenance unit is used in compressed air systems that require a compact and reliable solution for pressure regulation and lubrication. Thanks to its compact small design, the maintenance unit is ideal for tight spaces and can be used in industrial applications, workshops and automated systems where efficient compressed air maintenance is required.
- The two-part "Standard-mini" maintenance unit consists of a pressure-independent, feedback diaphragm pressure regulator with secondary venting, a centrifugal separator for removing liquids and a proportional lubricator that ensures precise lubrication of the compressed air. It also has a metal container and a pressure gauge.
- Type - 823 M
- Housing material - die-cast zinc, painted silver
- Drip cap material - zinc-glass-NBR
- Sealing material - NBR
- Container - Metal container
- Series - Standard-mini
- Thread - G 1/8"
- BG - 0
- Flow rate - 350 l/min
- Flow value measurement - at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
- Medium temperature - -10°C to 60°C
- Ambient temperature - -10°C to 60°C
- Inlet pressure max. - 25 bar
- Control range - 0.5 to 10 bar
- Pressure gauge display - 0 to 16 bar
- Condensate drain - manual
- Nominal diameter - 5
- Filter fineness - 5 µm
- Width - 85.0 mm
- Height - 163.5 mm
