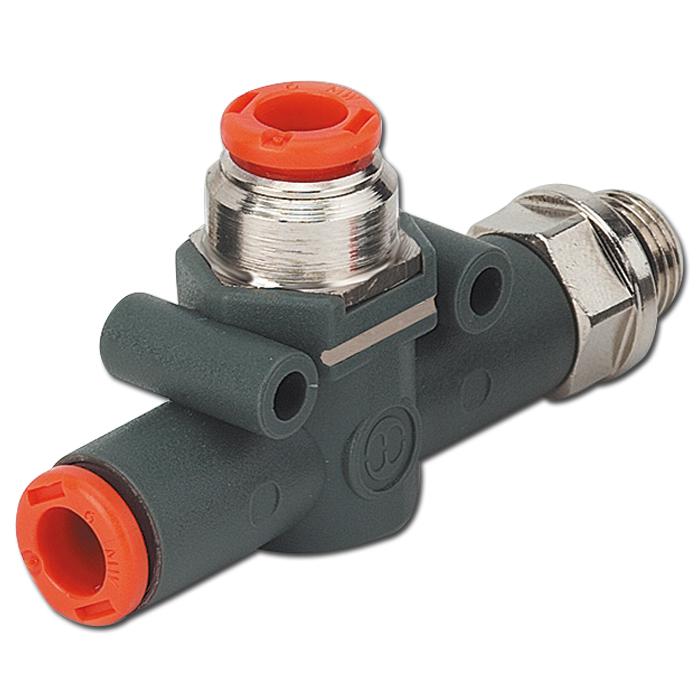

In-Line Quick exhaust valves - series VSRR L - hose to thread
| From € 21,86 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- Quick exhaust valves for filtered compressed air with or without lubrication. When oiled, then continuously.
- The VSRR L Quick exhaust valves with adjustable air belong to the LINE ON LINE ® family and can be connected in parallel or in series with these products.
- There are versions with two quick plug-in connections for tube / hose connection and versions with a Schnellsteck- and a threaded connection made of nickel plated brass (tube / thread).
- The main feature of these valves is the controllability of the air by means of a throttle. Thus, these valves can be influenced by the speed of an actuator.
- There are achieved higher speeds than the standard flow controllers (for example, exhaust flow controls).
- Operating Pressure - 10 bar
- Temperature range -20 +60
- Recommended hose - PP, PA
Versions: (7)
Narrow down your selection
diameter Ø
connection
Flow rate at 6.3 bar
Flow rate at 6.3 bar
Item No.: 973990637010
Type
| diameter Ø | 4 mm |
| connection | M5 |
| Flow rate at 6.3 bar | 50 Nl / min. |
| Flow rate at 6.3 bar | 170 Nl / min. |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 21,86 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: 973990637020
Type
| diameter Ø | 4 mm |
| connection | 1/8 " |
| Flow rate at 6.3 bar | 50 Nl / min. |
| Flow rate at 6.3 bar | 170 Nl / min. |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 22,42 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 973990637080
Type
| diameter Ø | 6 mm |
| connection | 1/8 " |
| Flow rate at 6.3 bar | 270 Nl / min. |
| Flow rate at 6.3 bar | 460 Nl / min. |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 24,81 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 973990637090
Type
| diameter Ø | 6 mm |
| connection | 1/4 " |
| Flow rate at 6.3 bar | 270 Nl / min. |
| Flow rate at 6.3 bar | 460 Nl / min. |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 25,19 |
| Price incl. VAT |
available after order placement within 3 weeks
Item No.: 973990637100
Type
| diameter Ø | 8 mm |
| connection | 1/8 " |
| Flow rate at 6.3 bar | 400 Nl / min. |
| Flow rate at 6.3 bar | 960 Nl / min. |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 28,39 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 973990637110
Type
| diameter Ø | 8 mm |
| connection | 1/4 " |
| Flow rate at 6.3 bar | 400 Nl / min. |
| Flow rate at 6.3 bar | 960 Nl / min. |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 28,61 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 973990637120
Type
| diameter Ø | 8 mm |
| connection | 3/8 " |
| Flow rate at 6.3 bar | 400 Nl / min. |
| Flow rate at 6.3 bar | 960 Nl / min. |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 32,30 |
| Price incl. VAT |
Ex stock within 4 days deliverable
