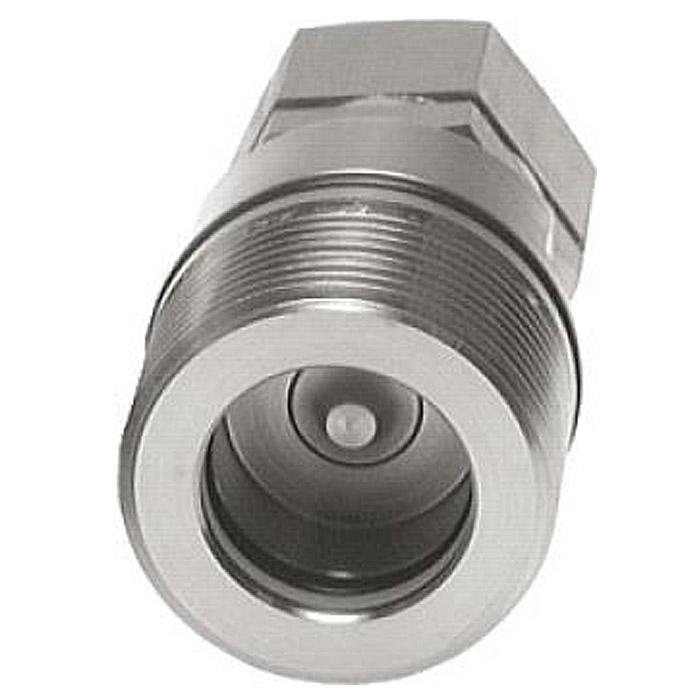

Hydraulic Quick Coupler - Muffle - Stainless Steel 1.4404 - With Female Thread
(Exemplary presentation)
| € 997,18 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
979913921001
Type
| Type | inside G 1½ inch |
| Female Thread | M70 x 3 mm |
| A | 85 mm |
| B | 31.5 mm |
| PN | 8 |
| Installation Size | 200 bar |
Product Description
- Locking of plug and muffle if decoupled
- Connnecting coupling muffle and coupler by screws wih the nut
- During the copling procedure the valve chamber is sealed before opening the valve
- The valves are allready decoupled before the connection pulled off
- Up to max. 50 bar under pressure coupleable
- Safe compared to pressure studs and pressure vibrations
- Aerodynamical flow
- Application
- Hydraulic quick coupling is a muffle made of Stainless Steel
- Suitable for agricultural and construction machines
- Body Material - Stainless Steel 1.4404 (Rustfree)
- Supporting Ring Material - Teflon
- Sealing Material - Viton
- Temperature Range - -20°C up to 150°C
- With Female Thread
Versions: (6)
Narrow down your selection
Type
Female Thread
A
B
PN
Installation Size
Item No.: 979913921003
Type
| Type | inside G 1/4 inch |
| Female Thread | M24 x 2 mm |
| A | 35 mm |
| B | 6.3 mm |
| PN | 1 |
| Installation Size | 300 bar |
Item No.: 979913921005
Type
| Type | inside G 3/8 inch |
| Female Thread | M28 x 2 mm |
| A | 34 mm |
| B | 10 mm |
| PN | 2 |
| Installation Size | 250 bar |
Item No.: 979913921002
Type
| Type | inside G 1/2 inch |
| Female Thread | M36 x 2 mm |
| A | 42 mm |
| B | 12.5 mm |
| PN | 3 |
| Installation Size | 250 bar |
Item No.: 979913921004
Type
| Type | inside G 3/4 inch |
| Female Thread | M42 x 2 mm |
| A | 48 mm |
| B | 20 mm |
| PN | 4 |
| Installation Size | 250 bar |
Item No.: 979913921000
Type
| Type | inside G 1 inch |
| Female Thread | M48 x 3 mm |
| A | 55 mm |
| B | 25 mm |
| PN | 6 |
| Installation Size | 250 bar |
Item No.: 979913921001
Type
| Type | inside G 1½ inch |
| Female Thread | M70 x 3 mm |
| A | 85 mm |
| B | 31.5 mm |
| PN | 8 |
| Installation Size | 200 bar |
