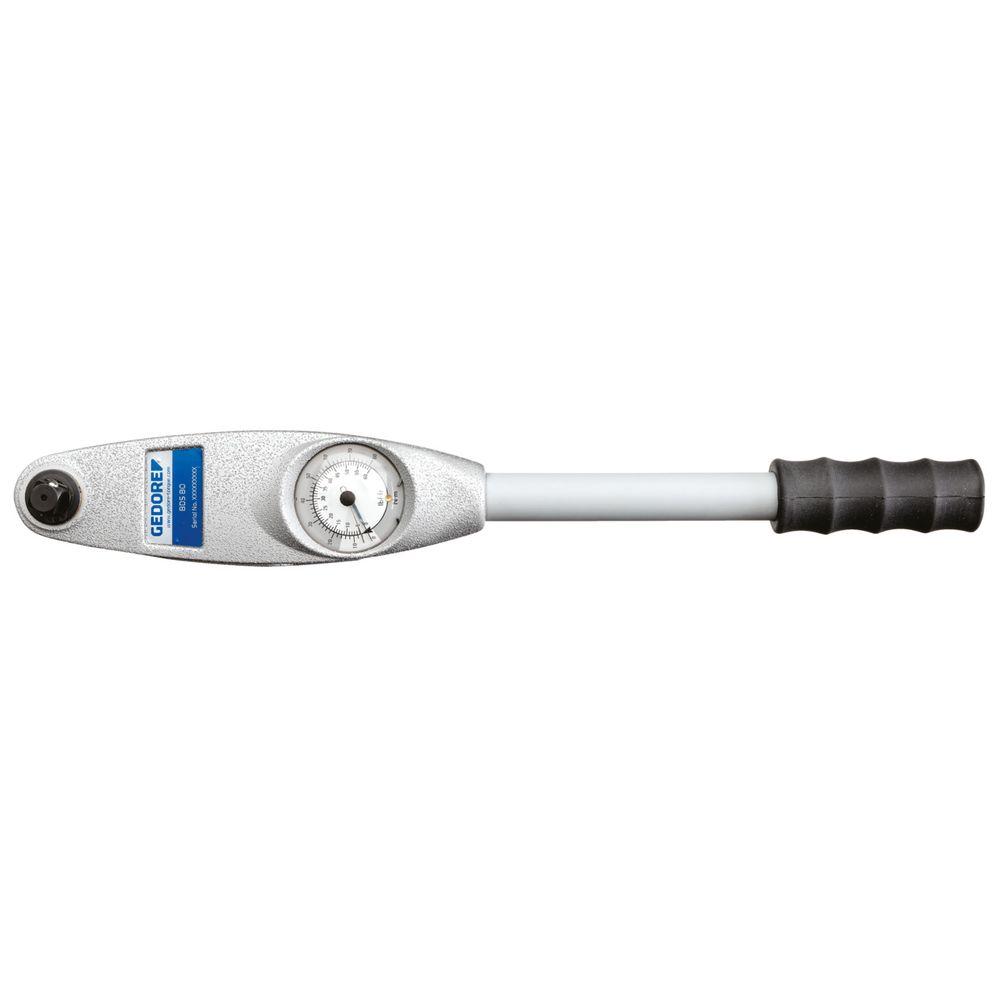

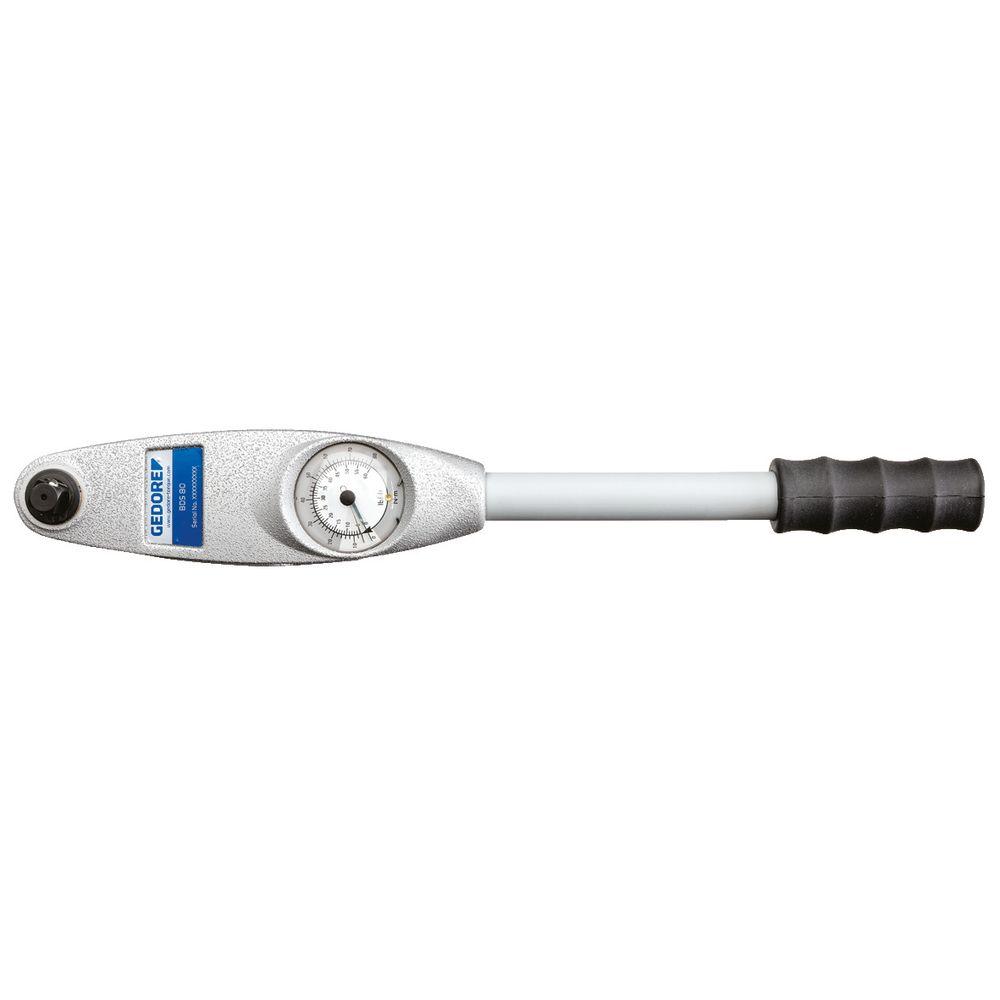

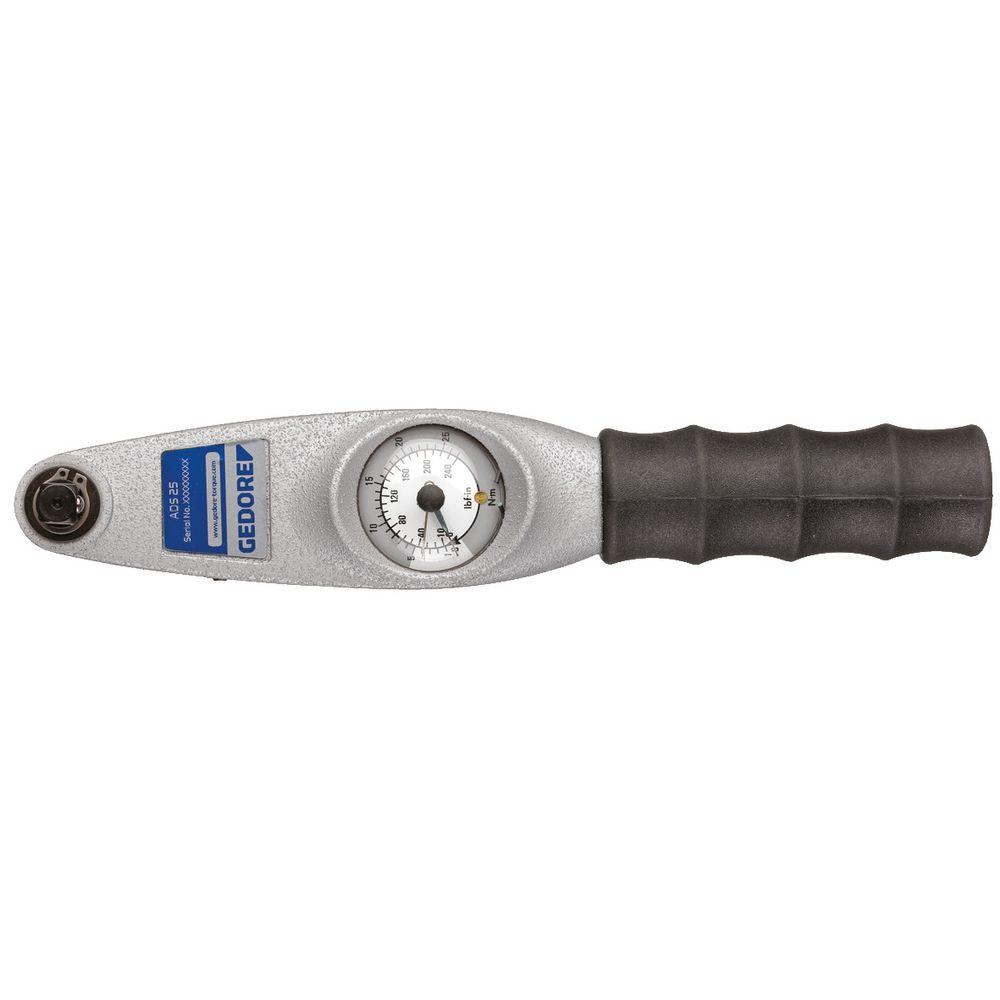

Gedore torque wrench - with drag indicator - Torque range 0.8 to 2000 Nm - Price per piece
| € 2.426,33 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
9430EDS1400S
Type
| Execution | EDS1400 |
| Double square drive | 1'' |
| Torque range | 280 - 1400 Nm |
| Torque range lbf in/lbf ft | 200 - 1000 lbf ft |
| EPA compliant | no |
Product Description
- The Gedore torque wrench is suitable for testing, inspection and maintenance work in workshops, trade and industry.
- It enables controlled tightening (right/left) and checking of tightening values.
- The Gedore torque wrench has a dial gauge and a drag indicator, the ergonomically shaped handle is grease and oil resistant.
- The integrated ratchet with double square drive enables a quick change between left-hand and right-hand tightening.
- The built-in mechanical stop (at max. 25% overload) prevents overloading and thus a defect in the tool and the screw connection.
- Equipped with a double scale, the torque wrench can be used in a variety of applications.
- The following models are EPA-compliant: ADS4, ADS12D, ADS25, ADS40.
- The following models are equipped with an audivisual signal as standard: CDS400S, DDS800S, EDS1400, EDS2000.
- Tube material - aluminum
- Material handle - plastic
- Length - 244 to 2040 mm
- Double square drive - 1/4'', 3/8'', 1/2'', 3/4'' or 1''
- Torque ranges - 0.8 - 4 Nm to 400 - 2000 Nm
- EPA conformity - selected models
- Scale - Nm and lbf in/lbf ft
- Price - per piece
Versions: (11)
Narrow down your selection
Execution
Double square drive
Torque range
Torque range lbf in/lbf ft
EPA compliant
Item No.: 9430ADS40000
Type
| Execution | ADS4 |
| Double square drive | 1/4'' |
| Torque range | 0.8 - 4 Nm |
| Torque range lbf in/lbf ft | 7 - 35 lbf in |
| EPA compliant | yes |
Item No.: 9430ADS80000
Type
| Execution | ADS8 |
| Double square drive | 1/4'' |
| Torque range | 1.6 - 8 Nm |
| Torque range lbf in/lbf ft | 14 - 75 lbf in |
| EPA compliant | yes |
Item No.: 9430ADS12D00
Type
| Execution | ADS12D |
| Double square drive | 1/4'' |
| Torque range | 2.4 - 12 Nm |
| Torque range lbf in/lbf ft | 21 - 105 lbf in |
| EPA compliant | yes |
Item No.: 9430ADS25000
Type
| Execution | ADS25 |
| Double square drive | 3/8'' |
| Torque range | 5 - 25 Nm |
| Torque range lbf in/lbf ft | 44 - 220 lbf in |
| EPA compliant | yes |
Item No.: 9430ADS40001
Type
| Execution | ADS40 |
| Double square drive | 3/8'' |
| Torque range | 8 - 40 Nm |
| Torque range lbf in/lbf ft | 72 - 360 lbf in |
| EPA compliant | yes |
Item No.: 9430BDS80E00
Type
| Execution | BDS80E |
| Double square drive | 1/2'' |
| Torque range | 16 - 80 Nm |
| Torque range lbf in/lbf ft | 12 - 60 lbf ft |
| EPA compliant | no |
Item No.: 9430BDS20000
Type
| Execution | BDS200 |
| Double square drive | 1/2'' |
| Torque range | 40 - 200 Nm |
| Torque range lbf in/lbf ft | 30 - 160 lbf ft |
| EPA compliant | no |
Item No.: 9430CDS400S0
Type
| Execution | CDS400S |
| Double square drive | 3/4'' |
| Torque range | 80 - 400 Nm |
| Torque range lbf in/lbf ft | 60 - 300 lbf ft |
| EPA compliant | no |
Item No.: 9430DDS800S0
Type
| Execution | DDS800S |
| Double square drive | 3/4'' |
| Torque range | 160 - 800 Nm |
| Torque range lbf in/lbf ft | 120 - 600 lbf ft |
| EPA compliant | no |
Item No.: 9430EDS1400S
Type
| Execution | EDS1400 |
| Double square drive | 1'' |
| Torque range | 280 - 1400 Nm |
| Torque range lbf in/lbf ft | 200 - 1000 lbf ft |
| EPA compliant | no |
Item No.: 9430EDS2000S
Type
| Execution | EDS2000 |
| Double square drive | 1'' |
| Torque range | 400 - 2000 Nm |
| Torque range lbf in/lbf ft | 300 - 1500 lbf ft |
| EPA compliant | no |
