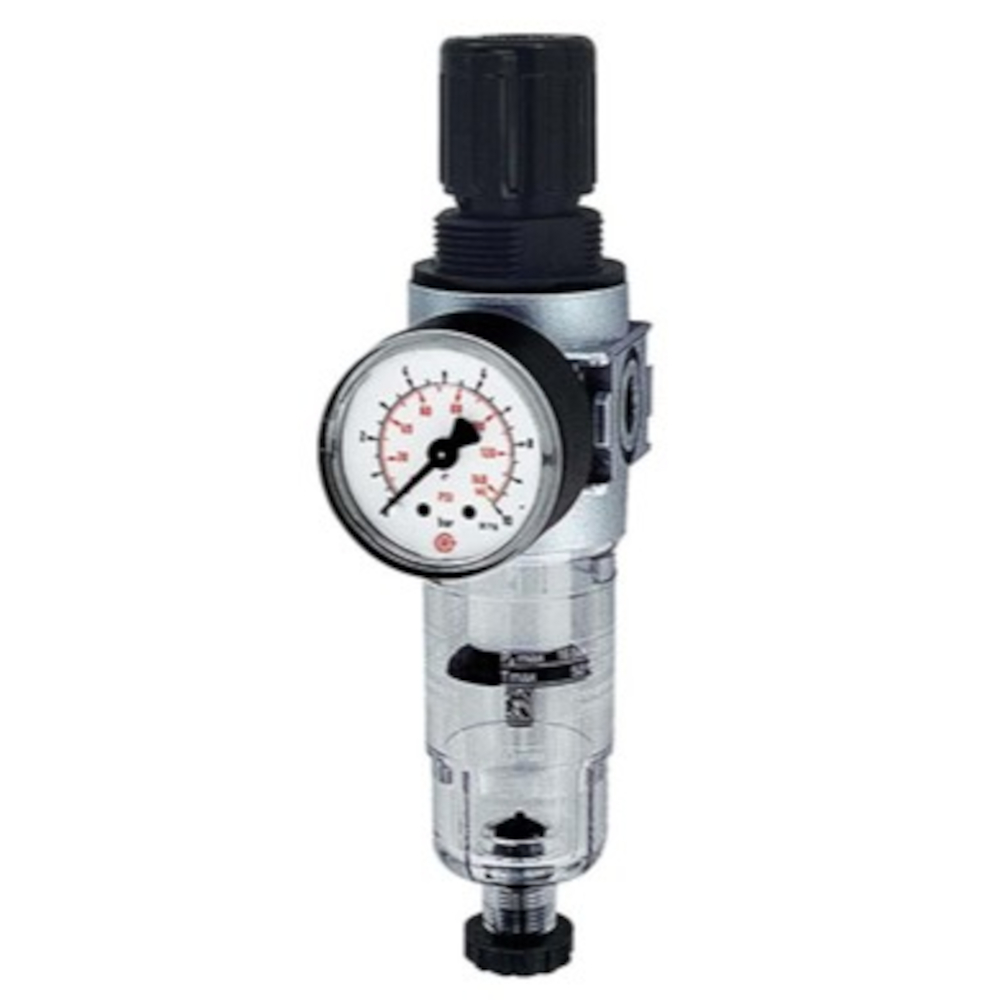

Filter regulator - Multifix - Series 0 - G 1/8" to G 1/4" - 1000 l/min
(Exemplary presentation)
| From € 59,11 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The "multifix-mini" filter regulator is a compact and efficient pressure regulator for use in pneumatic systems.
- The filter regulator is particularly suitable for use in applications that require reliable and precise pressure control, such as in automation technology, machine control or pneumatics in workshops.
- The "multifix-mini" filter regulator is equipped with a polycarbonate tank and a pressure gauge.
- It has a filter fineness of 5 µm, a G 1/8" or G 1/4" connection and a maximum operating pressure of 16 bar.
- Drainage takes place via a semi-automatic valve (HAV).
- The pressure-independent and feedback diaphragm pressure regulator is equipped with secondary venting and is supplied in combination with a centrifugal separator.
- The pressure setting can be locked by pressing in the handwheel, which enables stable and precise pressure regulation.
- Version - pressure regulator, reversible (with secondary venting) with additional filtering by centrifugal principle and sintered filter
- Body - Zinc die-cast Z410
- Spring cover - POM
- Diaphragms and seals - NBR
- Condensate container - polycarbonate
- Temperature range - up to max. +60°C
- Pressure gauge connection - G 1/8"
- Own air consumption - none
- Pore size in the filter - 5 µm
- ATEX - II 2GD IIA/IIB/IIC T4 0°C Ta 60°C
- Inlet pressure - 1.5 to max. 16 bar (when using coupling package max. 12 bar, with metal tank max. 20 bar)
- Condensate drain - semi-automatic
- Max. Condensate volume - 16 cm³
- Option - lockable with cylinder lock, with metal container, automatic water drain (1.5 to 16 bar, with manual drain up to 20 bar)
Versions: (18)
Narrow down your selection
Thread
Pressure control range
Pressure gauge display
Pressure gauge diameter
Option
Item No.: FR0X14821000
Type
| Thread | G 1/4" |
| Pressure control range | 0.1 - 3 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | - |
Item No.: FR0X14821001
Type
| Thread | G 1/4" |
| Pressure control range | 0.1 - 3 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | Automatic water drainage |
Item No.: FR0X14821002
Type
| Thread | G 1/4" |
| Pressure control range | 0.1 - 3 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | lockable, metal container |
Item No.: FR0X14821003
Type
| Thread | G 1/4" |
| Pressure control range | 0.1 - 3 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | Metal container |
Item No.: FR0X14821004
Type
| Thread | G 1/4" |
| Pressure control range | 0.2 - 6 bar |
| Pressure gauge display | 0 - 10 bar |
| Pressure gauge diameter | 40 mm |
| Option | - |
Item No.: FR0X14821005
Type
| Thread | G 1/4" |
| Pressure control range | 0.2 - 6 bar |
| Pressure gauge display | 0 - 10 bar |
| Pressure gauge diameter | 40 mm |
| Option | Metal container |
Item No.: FR0X14821006
Type
| Thread | G 1/4" |
| Pressure control range | 0.5 - 10 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | - |
Item No.: FR0X14821007
Type
| Thread | G 1/4" |
| Pressure control range | 0.5 - 10 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | Automatic water drainage |
Item No.: FR0X14821008
Type
| Thread | G 1/4" |
| Pressure control range | 0.5 - 10 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | lockable, automatic water drainage |
Item No.: FR0X14821009
Type
| Thread | G 1/4" |
| Pressure control range | 0.5 - 10 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | Automatic water drainage |
Item No.: FR0X14821010
Type
| Thread | G 1/8" |
| Pressure control range | 0.1 - 3 bar |
| Pressure gauge display | 0 - 6 bar |
| Pressure gauge diameter | 40 mm |
| Option | - |
Item No.: FR0X14821011
Type
| Thread | G 1/8" |
| Pressure control range | 0.1 - 3 bar |
| Pressure gauge display | 0 - 6 bar |
| Pressure gauge diameter | 40 mm |
| Option | lockable |
Item No.: FR0X14821012
Type
| Thread | G 1/8" |
| Pressure control range | 0.2 - 6 bar |
| Pressure gauge display | 0 - 10 bar |
| Pressure gauge diameter | 40 mm |
| Option | - |
Item No.: FR0X14821013
Type
| Thread | G 1/8" |
| Pressure control range | 0.2 - 6 bar |
| Pressure gauge display | 0 - 10 bar |
| Pressure gauge diameter | 40 mm |
| Option | Metal container |
Item No.: FR0X14821014
Type
| Thread | G 1/8" |
| Pressure control range | 0.5 - 10 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | - |
Item No.: FR0X14821015
Type
| Thread | G 1/8" |
| Pressure control range | 0.5 - 10 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | lockable |
Item No.: FR0X14821016
Type
| Thread | G 1/8" |
| Pressure control range | 0.5 - 10 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | lockable, automatic water drainage |
Item No.: FR0X14821017
Type
| Thread | G 1/8" |
| Pressure control range | 0.5 - 10 bar |
| Pressure gauge display | 0 - 16 bar |
| Pressure gauge diameter | 40 mm |
| Option | Metal container |
