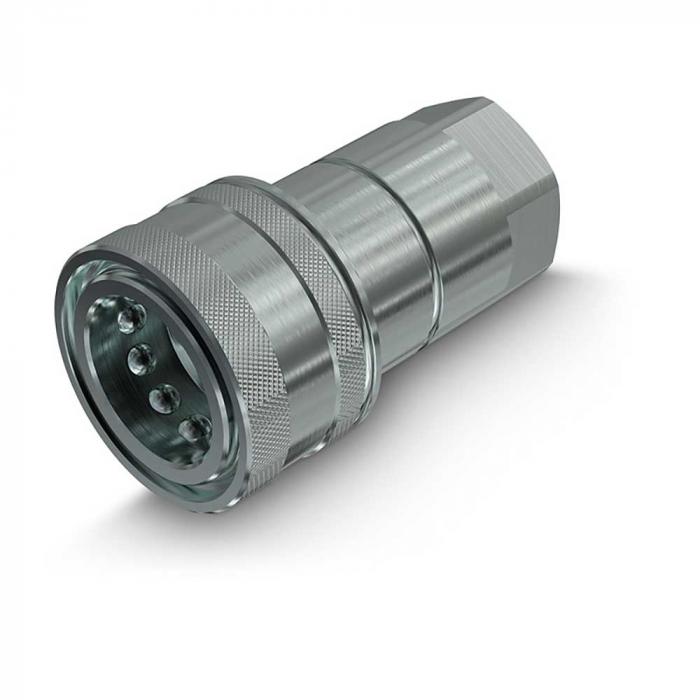

Faster NL socket - plug-in coupling - chrome-plated steel - DN 20 - size 12 - size 4 - internal thread G 3/4 "- PN 300
| € 31,52 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
9799NL34GASF
Product Description
- The Faster NL socket is ideally suited for the simple plug-in connection of hose and pipelines in areas of agriculture, construction and industry.
- The sleeve is made of chrome-plated steel, the seal is made of fluororubber. On the connection side, the socket is provided with a cylindrical internal thread.
- The coupling of the Faster NL series works completely without internal components, so that an optimal media flow is guaranteed and pressure losses are minimized.
- The sleeve is interchangeable with all Faster sleeves, with the exception of size 12.5.
- Body material - chrome-plated steel
- Material seal - FKM
- Size - 4
- Nominal size - 20
- Size - 12
- Length of sleeve - 84 mm
- Connection thread - G 3/4 "IG
- Outside Ø socket - 48 mm
- Wrench size - 34 mm
- max.operating pressure - 300 bar
- Resistance to red rust - 500 hours
- Temperature range - -25 to +125 Â ° C
