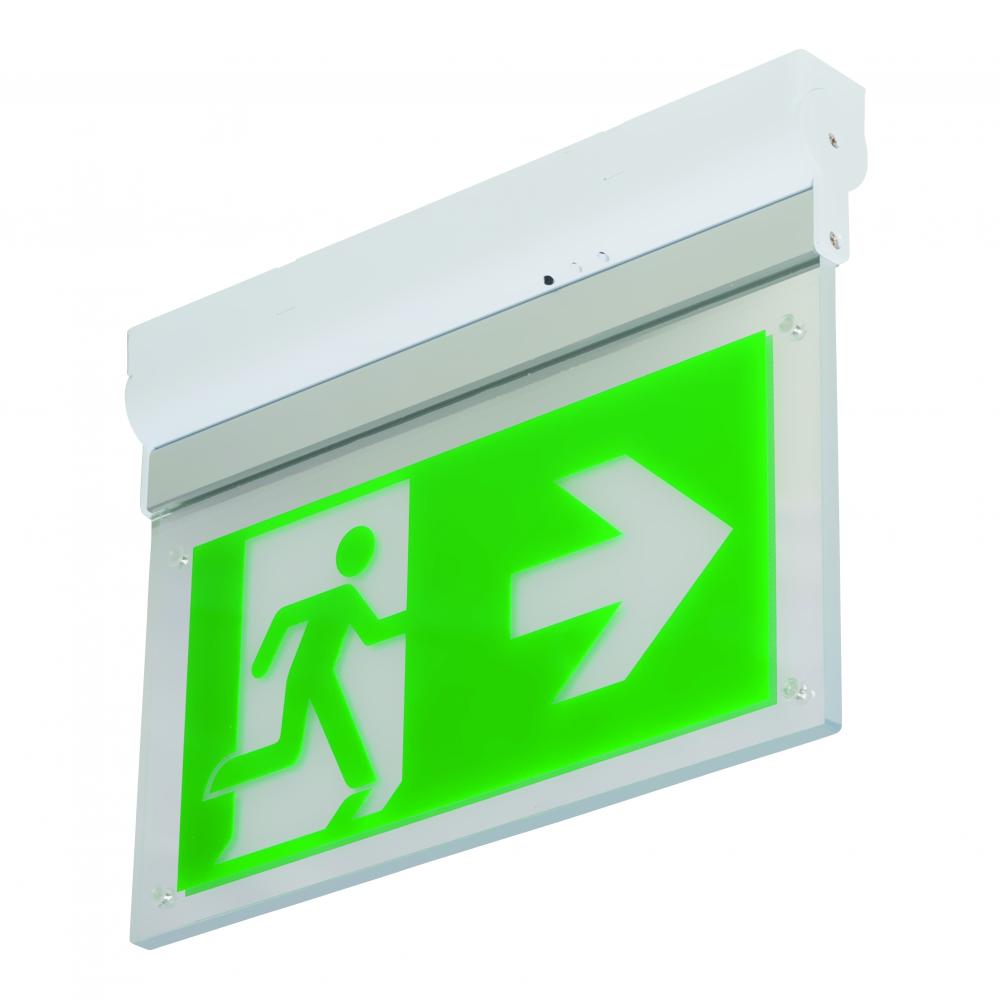

Escape sign luminaire L-LUX STANDARD ECO - polycarbonate housing - different versions
| From € 57,94 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The L-LUX STANDARD ECO escape sign luminaire is ideal for use in meeting places, restaurants, offices, banks, shopping centers, schools and hospitals in accordance with DIN EN 60598-2-22, EN 1838, EN 62034 and DIN VDE 0108.
- Depending on the version, the exit sign luminaire has a manual or automatic test function AUTOTEST, both including a test button, signaling is via a multi-colored LED.
- The light can be switched from permanent to standby mode.
- The scope of delivery includes a standard set of signs (emergency exit, escape route on the right, escape route on the left, escape route straight ahead) in accordance with DIN EN ISO 7010.
- The luminaire is suitable for wall and ceiling installation thanks to its universal mounting, the folding bracket enables quick installation.
- The escape sign luminaire is equipped with a CE mark and ATEX test certificate.
- The manufacturer's guarantee is two years.
- Housing material - polycarbonate, unbreakable
- Material pictogram - Plexiglass pane with one / two-sided pictogram made of PVC film
- Mains voltage - 230 V AC
- Mains power - 3 W
- Degree of protection - IP 20
- Protection class - II
- Single battery version
- available with manual test function or AUTOTEST (see variants)
- Emergency light - 3 hours
- Rechargeable battery - Ni-CD 3.6 V / 900 mAh
- Permanent stand-by circuit, with switchable permanent light
- Light source - LED
- Detection range - 26 meters
- Color - RAL 9003 (white)
Including standard set of signs
Versions: (7)
Narrow down your selection
Test function
emergency light
battery pack
Network performance
Recognition distance
Area of application
Dimensions
Item No.: 7678BR599030
Type
| Test function | with manual test function |
| emergency light | 3 hours |
| battery pack | Ni-CD 3.6 V / 0.9 Ah |
| Network performance | 3 W |
| Recognition distance | 26 meters |
| Area of application | Single battery version |
| Dimensions | 310 x 36 x 235 mm |
| € 57,94 |
| Price incl. VAT |
Delivery time 2 - 4 working days
Item No.: 7678BR599130
Type
| Test function | AUTOTEST function |
| emergency light | 3 hours |
| battery pack | Ni-CD 3.6 V / 0.9 Ah |
| Network performance | 3 W |
| Recognition distance | 26 meters |
| Area of application | Single battery version |
| Dimensions | 310 x 36 x 235 mm |
| € 65,13 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 7678BR599100
Type
| Test function | No |
| emergency light | No |
| battery pack | No |
| Network performance | No |
| Recognition distance | No |
| Area of application | Wall bracket for attaching the luminaire to the wall |
| Dimensions | No |
| € 10,26 |
| Price incl. VAT |
Delivery time 2 - 4 working days
Item No.: 7678F599D000
Type
| Test function | No |
| emergency light | No |
| battery pack | No |
| Network performance | No |
| Recognition distance | No |
| Area of application | Escape route sign on the left, for L-LUX STANDARD ECO TYP D series |
| Dimensions | No |
| € 4,61 |
| Price incl. VAT |
Delivery time 2 - 4 working days
Item No.: 7678F599E000
Type
| Test function | No |
| emergency light | No |
| battery pack | No |
| Network performance | No |
| Recognition distance | No |
| Area of application | Escape route sign on the right, for the L-LUX STANDARD ECO series, TYPE E |
| Dimensions | No |
| € 4,61 |
| Price incl. VAT |
Delivery time 2 - 4 working days
Item No.: 7678F599F000
Type
| Test function | No |
| emergency light | No |
| battery pack | No |
| Network performance | No |
| Recognition distance | No |
| Area of application | Escape route sign on the left, for the L-LUX STANDARD ECO series |
| Dimensions | No |
| € 4,61 |
| Price incl. VAT |
Delivery time 2 - 4 working days
Item No.: 7678F599G000
Type
| Test function | No |
| emergency light | No |
| battery pack | No |
| Network performance | No |
| Recognition distance | No |
| Area of application | Escape route sign up to the right, for L-LUX STANDARD ECO series, TYPE G |
| Dimensions | No |
| € 4,61 |
| Price incl. VAT |
Delivery time 2 - 4 working days
