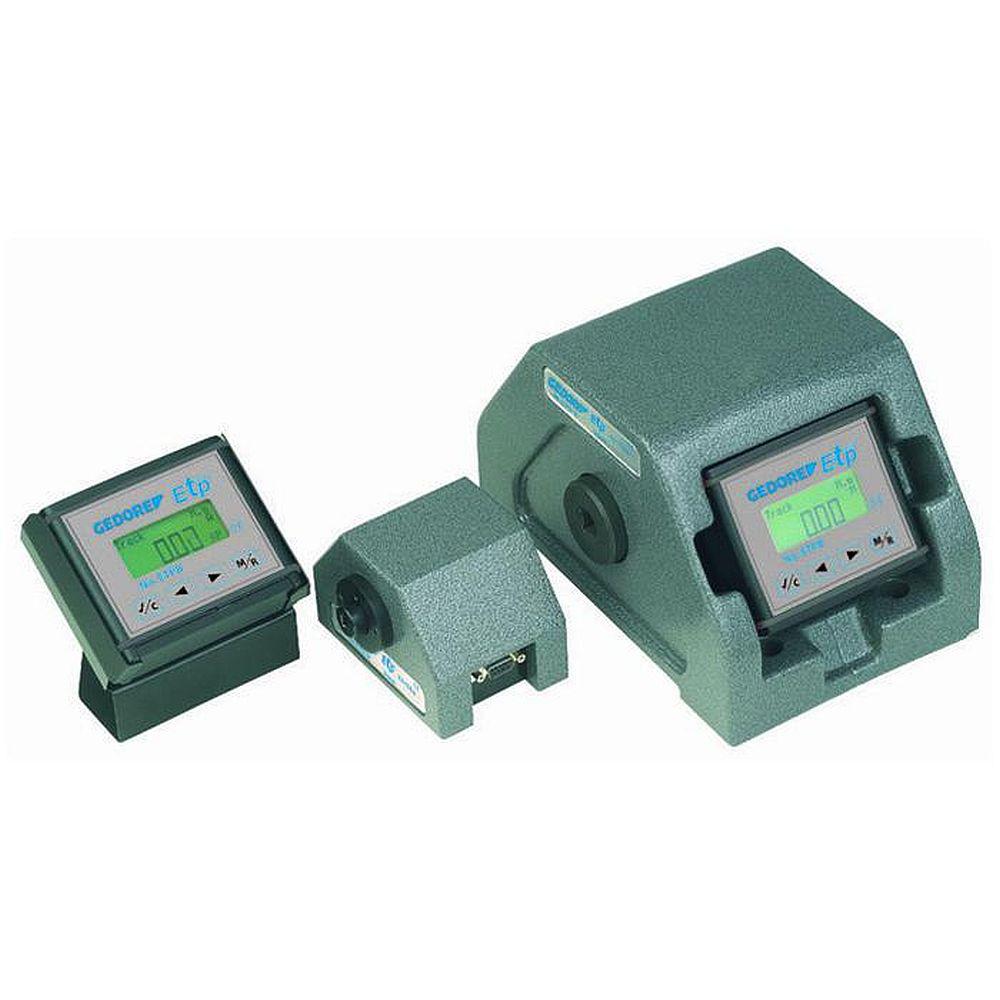

Electronic torsion tester - vertical / horizontal - 0.5 to 3150 N · m
| From € 3.982,00 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- Electronic torsion tester - ideal for testing, adjusting and certifying right and left torque wrenches
- Application
- 5 models in the range of 0.5 to 3150 N · m
- vertical or horizontal inspection according to DIN EN ISO 6789
- electronic test device with integrated measuring electronics
- Stable base housing made of cast aluminum (except ETP3150) with separate or removable operating display
- serial interface RS232 for PC
- ETP 15 with overload protection and tool for manual reset after unwanted overload
- Reading accuracy torque +/- 1%, +/- 1 digit from the reading
- Factory certificate based on VDI 2646
- large LC graphic display
- large measuring range in N · m - switchable to cN · m, lbf · ft or lbf · in (depending on model)
- Power supply with Euro plug
- Scope of delivery includes operating display - display incl. Cable software incl. PC connection cable
- Drive seat square - 1/4 to 1.1 / 2 inches
- Actuator Square Nominal size - 6.3 to 40.0 mm
- Working / measuring range N · m (min / max) - 0.5 to 3150 N · m
- Working / measuring range lbf.ft (min / max) - 0.4 to 2323 lbf.ft
- Resolution - 0.001 to 1.0 N · m
Versions: (5)
Narrow down your selection
Drive socket square
Drive mount square nominal size
Working / measuring range N · m (min / max)
Working / measuring range lbf.ft (min / max)
resolution
Item No.: 94313ETP1500
Type
| Drive socket square | 1/4 inch |
| Drive mount square nominal size | 6.3 mm |
| Working / measuring range N · m (min / max) | 0.5-15 N · m |
| Working / measuring range lbf.ft (min / max) | 0.4-11 lbf · ft |
| resolution | 0.001 N · m |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 3.982,00 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 94313ETP100X
Type
| Drive socket square | 1/2 inch |
| Drive mount square nominal size | 12.5 mm |
| Working / measuring range N · m (min / max) | 4-100 N · m |
| Working / measuring range lbf.ft (min / max) | 3-74 lbf · ft |
| resolution | 0.01 N · m |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 3.982,00 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 94313ETP5000
Type
| Drive socket square | 3/4 inch |
| Drive mount square nominal size | 20.0 mm |
| Working / measuring range N · m (min / max) | 20-500 N · m |
| Working / measuring range lbf.ft (min / max) | 14.8-369 lbf · ft |
| resolution | 0.1 N · m |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 3.982,00 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Item No.: 94313ETP1000
Type
| Drive socket square | 3/4 inch |
| Drive mount square nominal size | 20.0 mm |
| Working / measuring range N · m (min / max) | 50-1000 N · m |
| Working / measuring range lbf.ft (min / max) | 36.9-737.6 lbf · ft |
| resolution | 0.1 N · m |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 3.982,00 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: 94313ETP3150
Type
| Drive socket square | 1.1 / 2 inches |
| Drive mount square nominal size | 40.0 mm |
| Working / measuring range N · m (min / max) | 300-3150 N · m |
| Working / measuring range lbf.ft (min / max) | 221-2323 lbf · ft |
| resolution | 1.0 N · m |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 6.135,01 |
| Price incl. VAT |
Ex stock within 4 days deliverable
