Electronic tester Capture Lite - for torque wrench testing - measuring range 0.1 to 25 Nm - price per piece
| € 4.057,37 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description

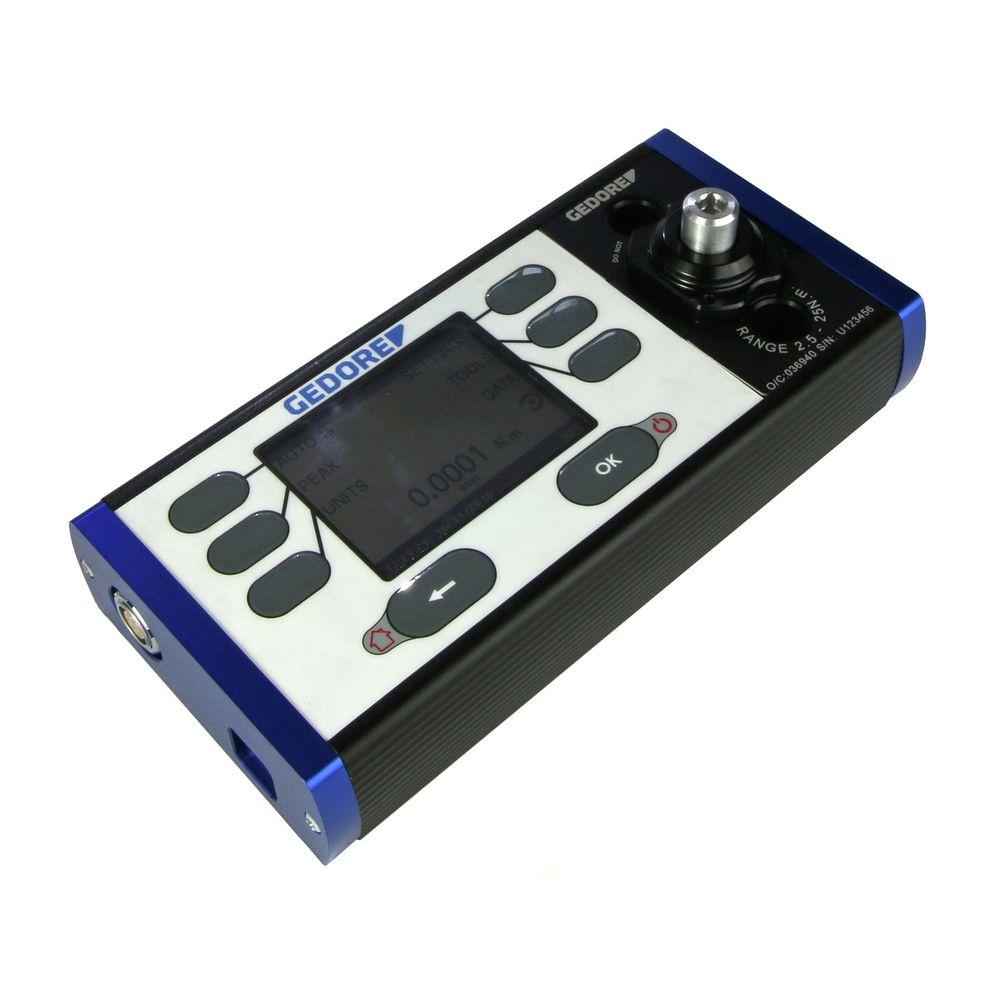

- The electronic test device Capture Hub from Gedore enables torque wrenches and screwdrivers to be tested.
- The Capture Hub electronic tester has a lightweight and robust aluminum housing and is equipped with a clear, high-contrast TFT display.
- It can be mounted horizontally and vertically and can be extended by an additional capture sensor (connection socket available).
- It has a 1/4'' square mount (model CH25 with 3/8'') and offers 4 measuring modes: Sliding value display, buckling point detection, peak value measurement and screwdriver test.
- A total of 50 test sequences can be programmed and 2,000 measured values can be stored.
- A USB port is available for data output and mains operation; the tester is powered by a powerful lithium-ion battery when not connected to the mains.
- The PC evaluation software "Capture Manager" is available separately.
- Included in the scope of delivery: Capture Hub, screw fall simulator, USB cable, power supply unit (with Euro plug), operating instructions, test certificate, plastic case.
- Measuring range - 0.1 to 25 Nm
- Measurement tolerance - +/- 1%
- Square mount - 1/4'' (6.3 mm) or 3/8'' (10 mm)
- Units - Nm, cNm, lbf ft, lbf in, ofz in
- Factory certificate - yes
- Price - per piece
Versions: (4)
Narrow down your selection
Execution
Measuring range
Item No.: 9430CH100000
Type
| Execution | CH 1 |
| Measuring range | 0.1 - 1 Nm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 4.057,37 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: 9430CH200000
Type
| Execution | CH 2 |
| Measuring range | 0.2 - 2 Nm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 4.057,37 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: 9430CH500000
Type
| Execution | CH 5 |
| Measuring range | 0.5 - 5 Nm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 4.057,37 |
| Price incl. VAT |
Delivery within 7-10 days
Item No.: 9430CH250000
Type
| Execution | CH 25 |
| Measuring range | 2.5 - 25 Nm |
Product safety
Unfortunately, the manufacturer's data is not yet available. We will try to update the data as soon as possible.
| € 4.057,37 |
| Price incl. VAT |
Delivery within 7-10 days
