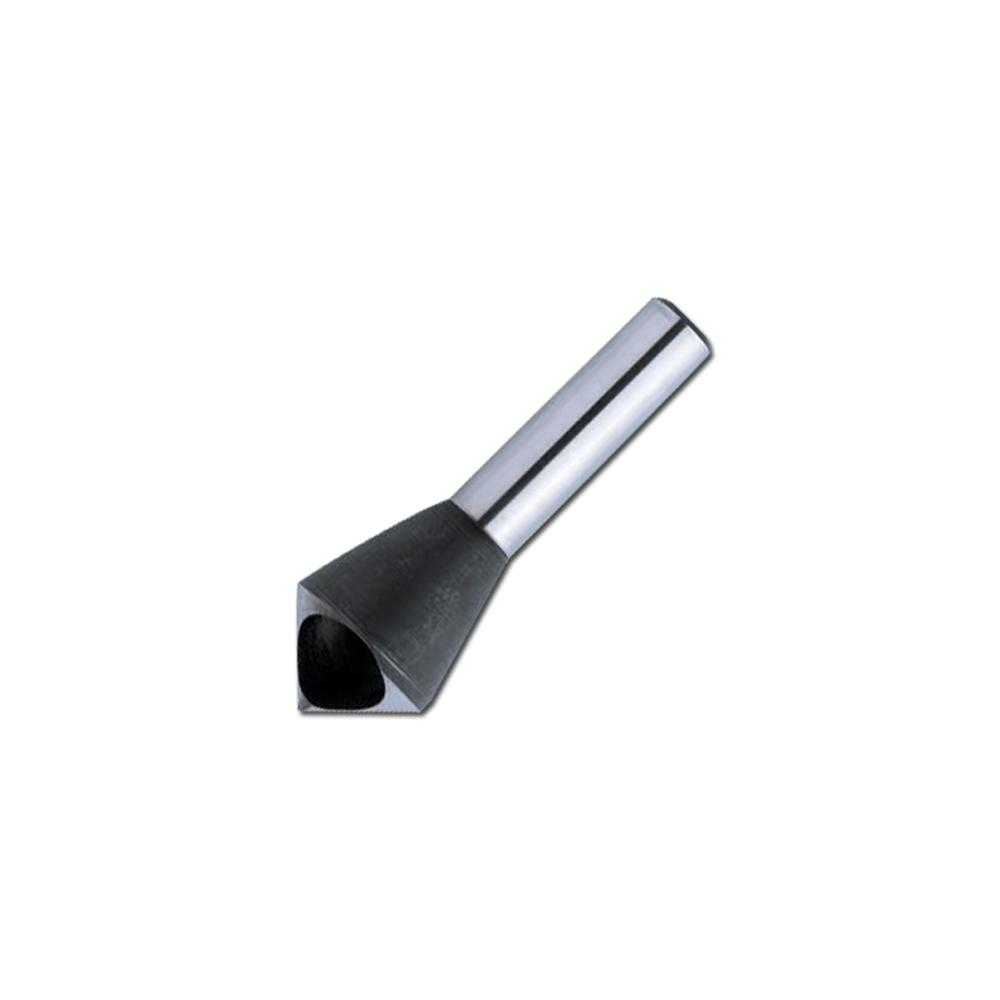

Deburring - Head Ø 90 ° - QL HSSE - FORUM
| € 10,26 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
4317784812191
Type
| Head Ø | 10.0 mm |
| total length | 46 mm |
| Shank Ø | 6 mm |
| countersunk | 2-5 mm |
| length | 55 mm |
| width | 15 mm |
Product Description
- Deburring suitable by the excellent cutting properties for almost all materials in equal measure
- Suitable for easy and chatter-free deburring and chamfering of holes.
- FORUM deburring, 90 °, QL HSSE
- The chips are discharged by the oblique bore in the shaft direction and can not damage the reduction.
- This lowering and around the machine spindle is protected.
- Sharpening is possible simply by regrinding using a grinding pin at the cutting breast.
- With 1 cutting side, 90 °, with equally verlaufendem special relief of the cone.
- The convenient cutting geometry, a slight, peeled forming section results.
Versions: (9)
Narrow down your selection
Head Ø
total length
Shank Ø
countersunk
length
width
Item No.: 4317784812191
Type
| Head Ø | 10.0 mm |
| total length | 46 mm |
| Shank Ø | 6 mm |
| countersunk | 2-5 mm |
| length | 55 mm |
| width | 15 mm |
Item No.: 4317784812207
Type
| Head Ø | 14.0 mm |
| total length | 48.5 mm |
| Shank Ø | 6 mm |
| countersunk | 5-10 mm |
| length | 198 mm |
| width | 4 mm |
Item No.: 4317784812214
Type
| Head Ø | 21.0 mm |
| total length | 65 mm |
| Shank Ø | 10 mm |
| countersunk | 10-15 mm |
| length | 261 mm |
| width | 4 mm |
Item No.: 4317784812221
Type
| Head Ø | 27.5 mm |
| total length | 85 mm |
| Shank Ø | 12 mm |
| countersunk | 15-20 mm |
| length | 91 mm |
| width | 32 mm |
Item No.: 4317784812238
Type
| Head Ø | 35.0 mm |
| total length | 102 mm |
| Shank Ø | 15 mm |
| countersunk | 20-25 mm |
| length | 139 mm |
| width | 55 mm |
Item No.: 4317784812245
Type
| Head Ø | 44.0 mm |
| total length | 115 mm |
| Shank Ø | 15 mm |
| countersunk | 25-30 mm |
| length | 126 mm |
| width | 55 mm |
Item No.: 4317784812252
Type
| Head Ø | 48.0 mm |
| total length | 127 mm |
| Shank Ø | 15 mm |
| countersunk | 30-35 mm |
| length | 163 mm |
| width | 83 mm |
Item No.: 4317784812269
Type
| Head Ø | 53.0 mm |
| total length | 136 mm |
| Shank Ø | 15 mm |
| countersunk | 35-40 mm |
| length | 139 mm |
| width | 66 mm |
Item No.: 4317784812276
Type
| Head Ø | 64.0 mm |
| total length | 166 mm |
| Shank Ø | 20 mm |
| countersunk | 40-50 mm |
| length | 168 mm |
| width | 78 mm |
