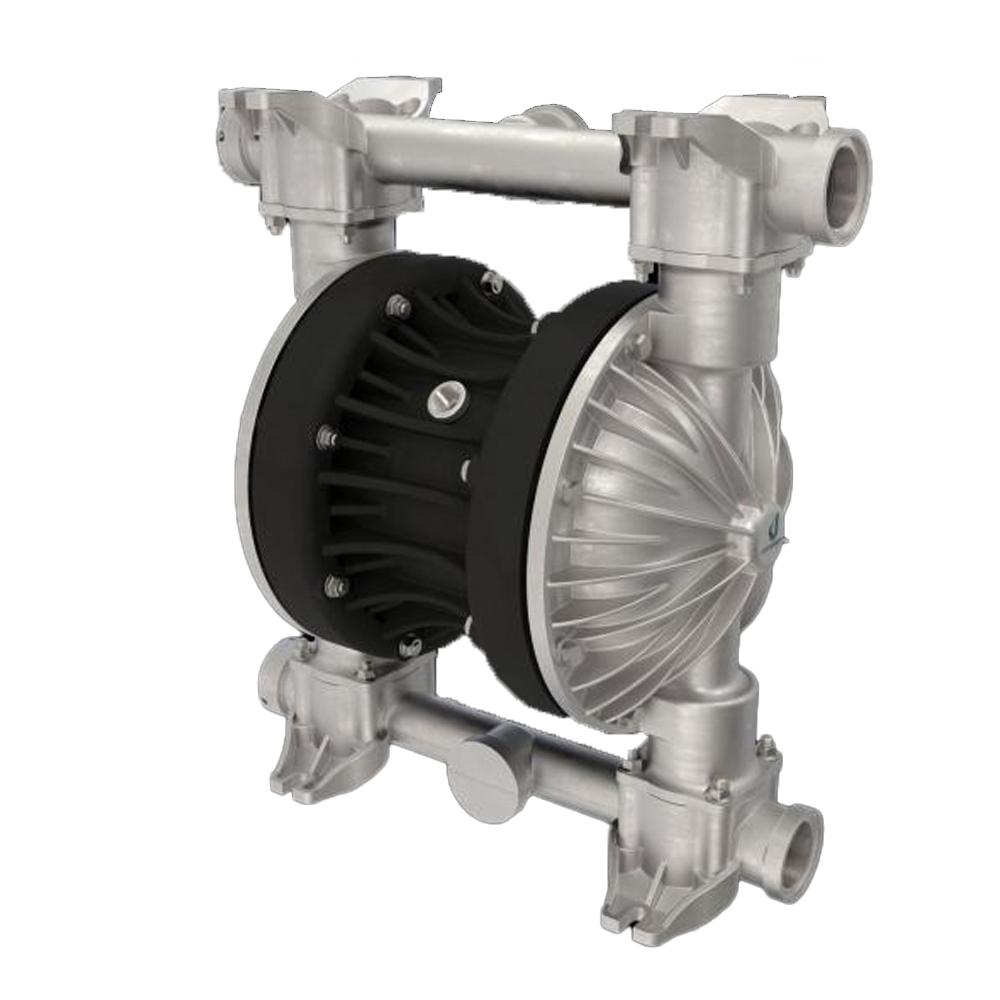

Compressed air double diaphragm pump Boxer 502 - Conduct - aluminum housing - 600 l / min - 8 bar
| € 2.579,37 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The compressed air double diaphragm pump is ideally suited for the transport of highly viscous media, which can also contain suspended solids.
- The diaphragm pump is equipped with a double diaphragm made of Hytrel and PTFE, is easy to maintain, easy to install and operate.
- It is self-priming and safe to run dry and guarantees oil-free air for environmentally friendly operation.
- Dimensions (W x H x D) - 566 x 621 x 404 mm
- Housing - aluminum
- max.flow rate - 600 l / min
- max.pressure - 8 bar
- max.delivery head - 80 m
- max.suction - dry 5 m - filled 9.5 m
- max.solid size - 8 mm
- Suction / outlet connection - 2 "BSP internal thread
- Air connection - 1/2 "BSP internal thread
- Weight - 37000 g
Versions: (4)
Narrow down your selection
execution
Material ball
Ball seat material
Material seal
Item No.: 2512IB502103
Type
| execution | Boxer 502 AL-HTTLT-C |
| Material ball | PTFE |
| Ball seat material | aluminum |
| Material seal | PTFE |
| € 2.579,37 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 2512IB502102
Type
| execution | Boxer 502 AlL-HTTIT-C |
| Material ball | PTFE |
| Ball seat material | PE-UHMW |
| Material seal | PTFE |
| € 2.579,37 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 2512IB502100
Type
| execution | Boxer 502 AL-HTAID-C |
| Material ball | stainless steel |
| Ball seat material | PE-UHMW |
| Material seal | EPDM |
| € 2.579,37 |
| Price incl. VAT |
Delivery time 7-10 working days
Item No.: 2512IB502101
Type
| execution | Boxer 502 AL-HTDID-C |
| Material ball | EPDM |
| Ball seat material | PE-UHMW |
| Material seal | EPDM |
| € 2.579,37 |
| Price incl. VAT |
Delivery time 7-10 working days
