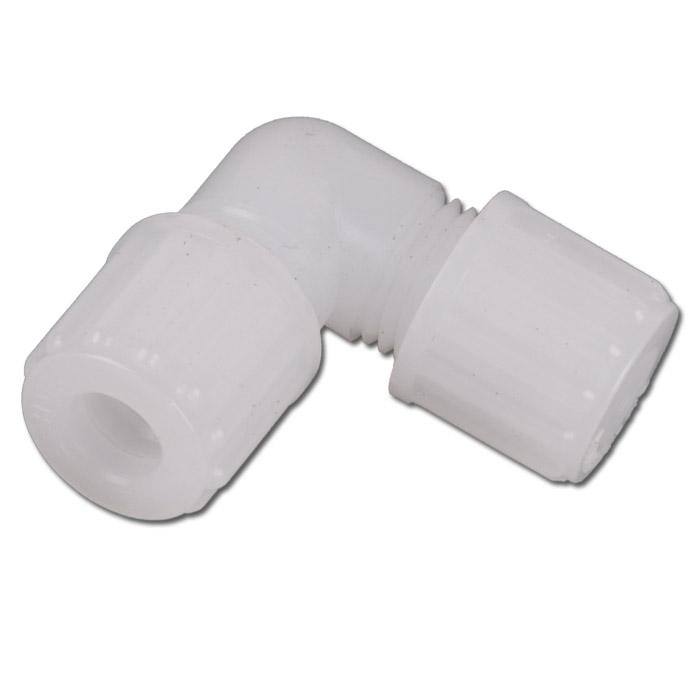

Angle-Hose Connetor - PVDF
(Exemplary presentation)
| From € 66,49 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The Hose is pushed over the Hose Connector and fastened by Knurled Nut with an Elastic Compresion Ring.
- The Compression Ring allows the manifold unfastening and fastening with same Compression Rings
- All Threads and Hose Nozzles (Hose Uptake) are Sutureless
- Application
- Angle Hose Connector to connect hose
- Resistant Acids, Salt Solutions, Aliphatic, Aromatic and Chlorinated Hydrocarbons, Alcohol and Halogenes
- Suitable to only a limited extent for Ketones, Esthers, Ether, Organic Bases and Alcaine Leaches
- Material - PVDF (Polyvinylidene Fluoride)
- Operating Temperature: -40°C up to Max. +140°C
- PN - 10 bar (at +20°C)
Versions: (5)
Narrow down your selection
Material
Hose Ø Outer x Inner
| Article No. | Material | Hose Ø Outer x Inner | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|
|
WCKX18281000 | PVDF | 12 x 10 |
|
||||
|
||||||||
|
|
WCKX18281001 | PVDF | 14 x 12 |
|
||||
|
||||||||
|
|
WCKX18281002 | PVDF | 6 x 4 |
|
||||
|
||||||||
|
|
WCKX18281003 | PVDF | 8 x 6 |
|
||||
|
||||||||
|
|
WCKX18281004 | PVDF | 10 x 8 |
|
||||
|
||||||||
