3/2-way Solenoid Valve - Type 6430 - Brass - Neutral media - female thread G 1/2" to G 1" - normally open (N.O.) - PN 1 to 16
| € 286,82 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 14 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
855200357605
Type
| Material | Brass |
| Thread | G 1/4 |
| Operating pressure | 1 to 16 bar |
| Tension | 230 V |
| Temperature | 0 to 80 °C |
Product Description

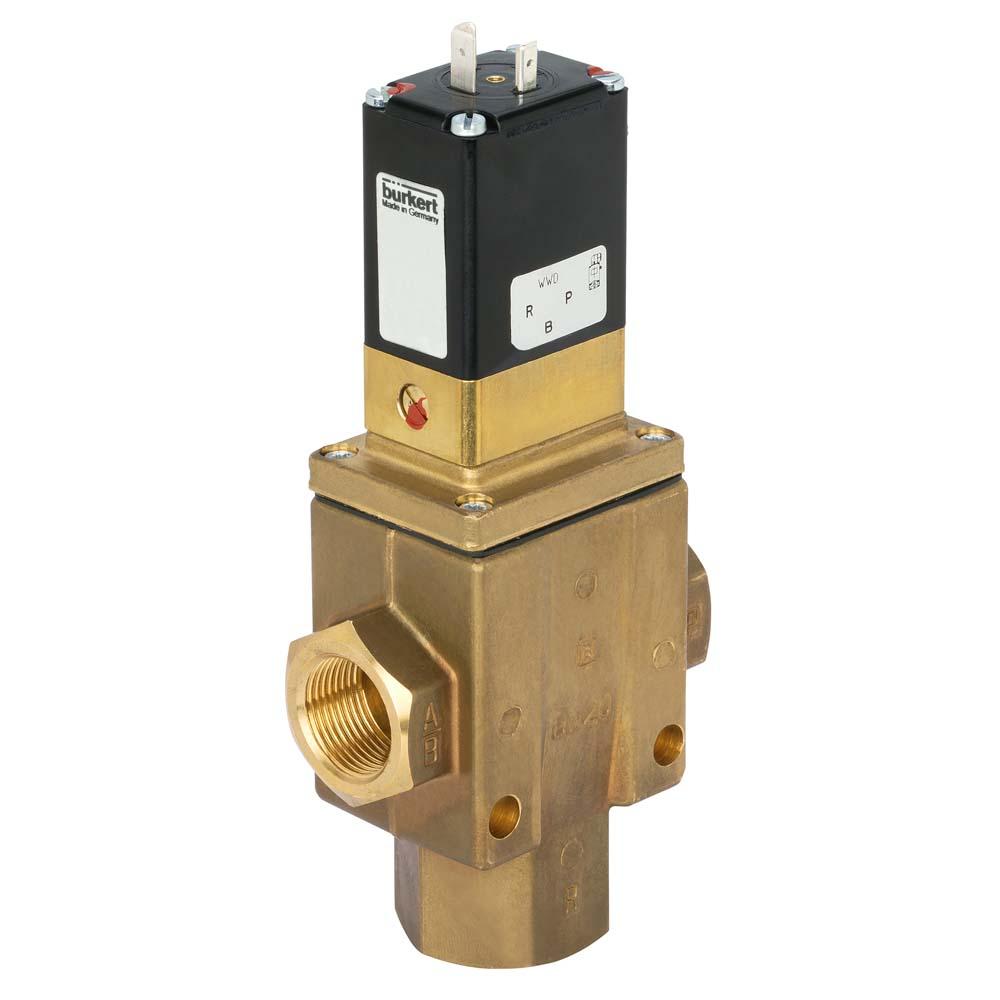

- The 3/2-way hinged armature solenoid valve is ideally suited for use with neutral media such as compressed air, water and thin-bodied oils.
- The solenoid valve is made of brass, the seal is made of nitrile rubber or polyurethane.
- In the direct-acting valve, the solenoid system and the medium chamber are separated from each other by a separating diaphragm system.
- The valve is supplied with a coil. A suitable plug must be purchased separately.
- Material body - brass
- Material seal - NBR or PUR
- Function - normally open (N.O.)
- Nominal size - 12 to 20
- Connection thread (IG) - G 1/2" to G 3/4"
- Thread exhaust air (IG) - G 3/4" to G 1"
- Control voltage - 230 V AC
- Power consumption - 8 W
- Operating pressure - 1 to 16 bar
- Protection class - IP 65
- Temperature range - 0 to +80 °C
- Ambient temperature - 0 to +55 °C
Versions: (15)
Narrow down your selection
Material
Thread
Operating pressure
Tension
Temperature
Item No.: 854035761200
Type
| Material | Brass |
| Thread | G 1/2 |
| Operating pressure | 1 to 16 bar |
| Tension | 230 V |
| Temperature | 0 to 80 °C |
Item No.: 854035761800
Type
| Material | Brass |
| Thread | G 3/4 |
| Operating pressure | 1 to 16 bar |
| Tension | 230 V |
| Temperature | 0 to 80 °C |
Item No.: 854000351175
Type
| Material | Brass |
| Thread | G 1/2 |
| Operating pressure | 1 to 16 bar |
| Tension | 24 V |
| Temperature | 0 to 80 °C |
Item No.: 854000351235
Type
| Material | Brass |
| Thread | G 3/4 |
| Operating pressure | 1 to 16 bar |
| Tension | 24 V |
| Temperature | 0 to 80 °C |
Item No.: 855200363110
Type
| Material | Brass |
| Thread | G 1/2 |
| Operating pressure | -1 to 8 bar |
| Tension | 24 V |
| Temperature | 0 to 80 °C |
Item No.: 855200361883
Type
| Material | Brass |
| Thread | G 1/2 |
| Operating pressure | 1 to 12 bar |
| Tension | 24 V |
| Temperature | 0 to 90 °C |
Item No.: 855200357646
Type
| Material | Brass |
| Thread | G 3/4 |
| Operating pressure | -1 to 8 bar |
| Tension | 24 V |
| Temperature | 0 to 80 °C |
Item No.: 855200357645
Type
| Material | Brass |
| Thread | G 1/2 |
| Operating pressure | -1 to 8 bar |
| Tension | 24 V |
| Temperature | 0 to 80 °C |
Item No.: 855200357630
Type
| Material | Brass |
| Thread | G 1/2 |
| Operating pressure | -1 to 3 bar |
| Tension | 24 V |
| Temperature | 0 to 80 °C |
Item No.: 855200357611
Type
| Material | Brass |
| Thread | G 1/2 |
| Operating pressure | 1 to 16 bar |
| Tension | 230 V |
| Temperature | 0 to 80 °C |
Item No.: 855200357605
Type
| Material | Brass |
| Thread | G 1/4 |
| Operating pressure | 1 to 16 bar |
| Tension | 230 V |
| Temperature | 0 to 80 °C |
Item No.: 855200357604
Type
| Material | Brass |
| Thread | G 1/4 |
| Operating pressure | 1 to 16 bar |
| Tension | 230 V |
| Temperature | 0 to 80 °C |
Item No.: 855200357601
Type
| Material | Brass |
| Thread | G 1/4" |
| Operating pressure | 1 to 16 bar |
| Tension | 230 V |
| Temperature | 0 to 80°C |
Item No.: 855200351181
Type
| Material | Brass |
| Thread | G 1/2 |
| Operating pressure | -1 to 8 bar |
| Tension | 24 V |
| Temperature | 0 to 80 °C |
Item No.: 855200351169
Type
| Material | Measuring |
| Thread | G 1/4 |
| Operating pressure | -1 bar 3 bar |
| Tension | 245 V |
| Temperature | 0 to 80 °C |
